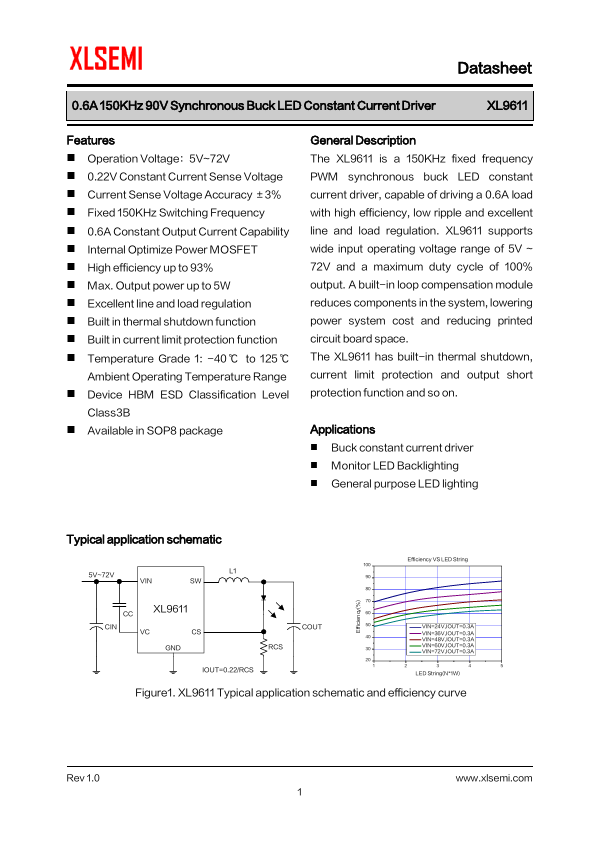

Datasheet Summary
0.6A 150KHz 90V Synchronous Buck LED Constant Current Driver
Features
- Operation Voltage：5V~72V
- 0.22V Constant Current Sense Voltage
- Current Sense Voltage Accuracy ±3%
- Fixed 150KHz Switching Frequency
- 0.6A Constant Output Current Capability
- Internal Optimize Power MOSFET
- High efficiency up to 93%
- Max. Output power up to 5W
- Excellent line and load regulation
- Built in thermal shutdown function
- Built in current limit protection function
- Temperature Grade 1: -40 ℃ to 125 ℃
Ambient Operating Temperature Range
- Device HBM ESD Classification Level
Class3B
- Available in SOP8 package
General Description The XL9611 is a 150KHz fixed frequency PWM...
