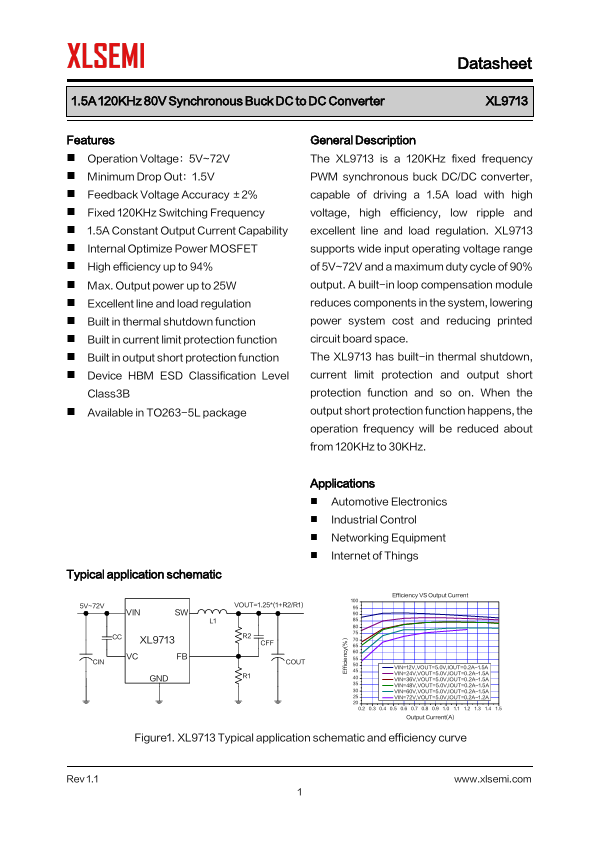

Datasheet Summary
1.5A 120KHz 80V Synchronous Buck DC to DC Converter
Features
- Operation Voltage：5V~72V
- Minimum Drop Out：1.5V
- Feedback Voltage Accuracy ±2%
- Fixed 120KHz Switching Frequency
- 1.5A Constant Output Current Capability
- Internal Optimize Power MOSFET
- High efficiency up to 94%
- Max. Output power up to 25W
- Excellent line and load regulation
- Built in thermal shutdown function
- Built in current limit protection function
- Built in output short protection function
- Device HBM ESD Classification Level
Class3B
- Available in TO263-5L package
General Description The XL9713 is a 120KHz fixed frequency PWM synchronous buck DC/DC converter, capable of driving a 1.5A...
