XL2012 Datasheet 5v/2.4a 150khz 40v Buck DC To DC Converter

Manufacturer: Xlsemi

Overview: Datasheet 5V/2.4A 150KHz 40V Buck DC to DC Converter For USB.

Datasheet Details

Part number XL2012
Manufacturer Xlsemi
File Size 236.28 KB
Description 5V/2.4A 150KHz 40V Buck DC to DC Converter
Datasheet XL2012-Xlsemi.pdf

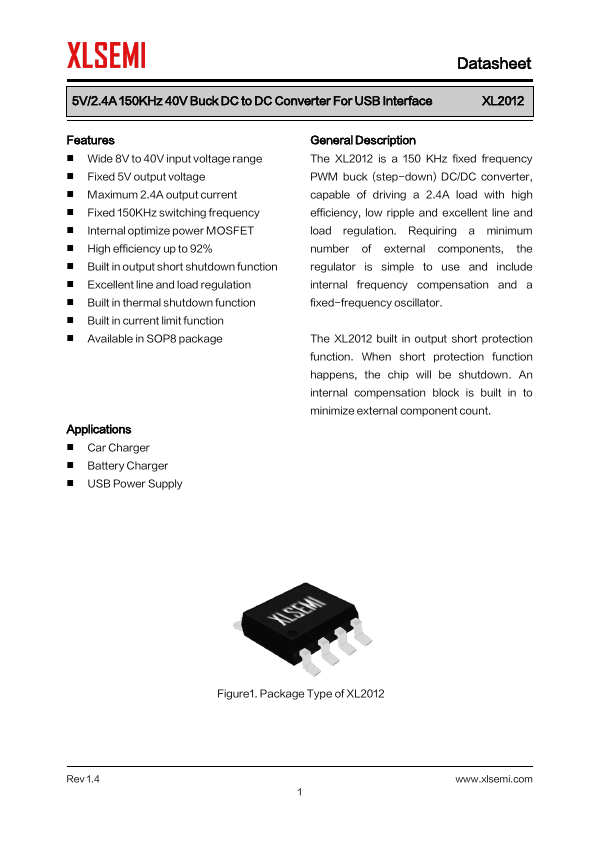

General Description

The XL2012 is a 150 KHz fixed frequency PWM buck (step-down) DC/DC converter, capable of driving a 2.4A load with high efficiency, low ripple and excellent line and load regulation.

Requiring a minimum number of external ponents, the regulator is simple to use and include internal frequency pensation and a fixed-frequency oscillator.

The XL2012 built in output short protection function.

Key Features

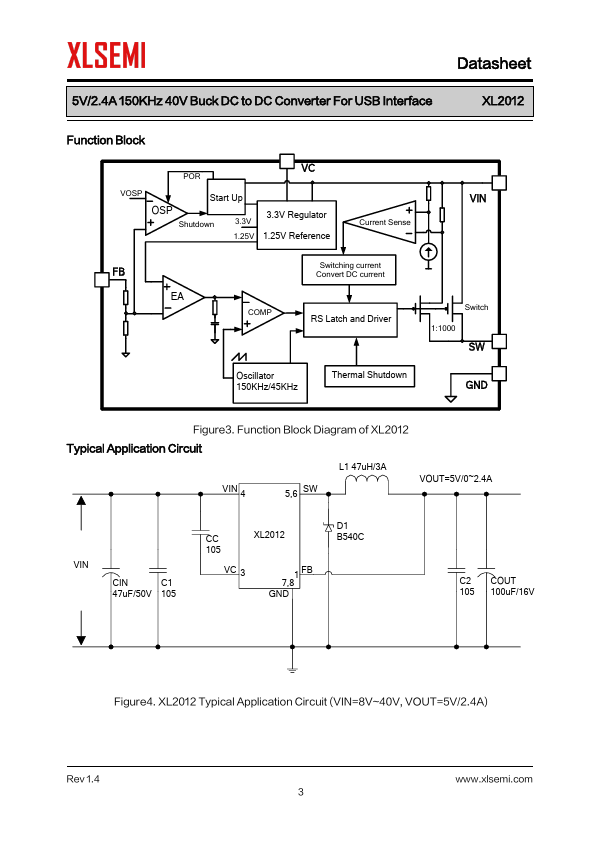

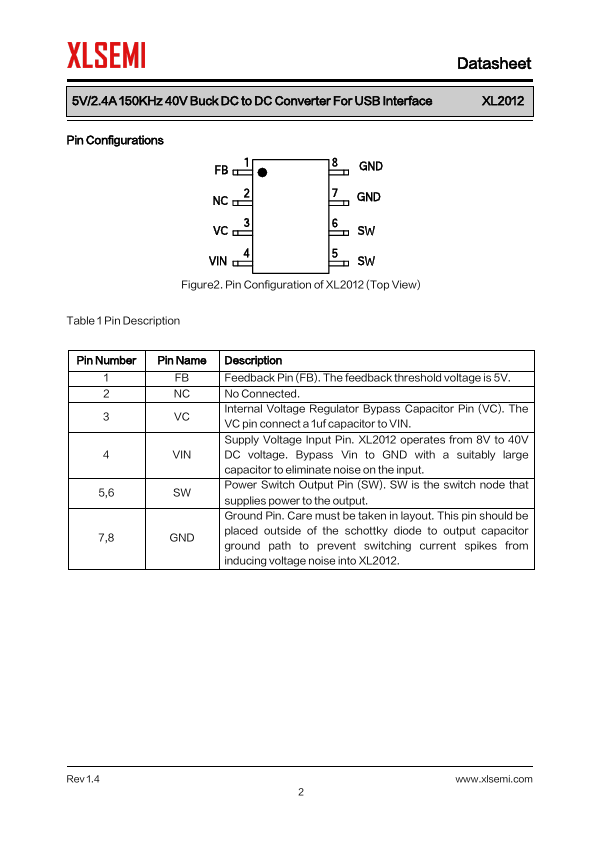

  • n n n n n n n n n n n Wide 8V to 40V input voltage range. Fixed 5V output voltage. Maximum 2.4A output current. Fixed 150KHz switching frequency. Internal optimize power MOSFET. High efficiency up to 92%. Built in output short shutdown function. Excellent line and load regulation. Built in thermal shutdown function. Built in current limit function. Available in SOIC-8 package. XL2012 General.
