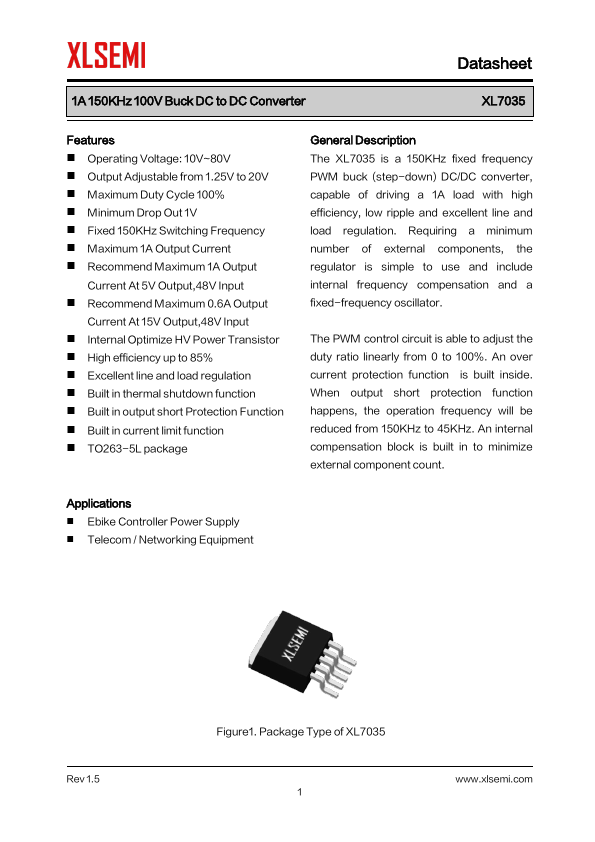

Datasheet Summary
1A 150KHz 100V Buck DC to DC Converter
Features
- Operating Voltage: 10V~80V
- Output Adjustable from 1.25V to 20V
- Maximum Duty Cycle 100%
- Minimum Drop Out 1V
- Fixed 150KHz Switching Frequency
- Maximum 1A Output Current
- Remend Maximum 1A Output
Current At 5V Output,48V Input
- Remend Maximum 0.6A Output
Current At 15V Output,48V Input
- Internal Optimize HV Power Transistor
- High efficiency up to 85%
- Excellent line and load regulation
- Built in thermal shutdown function
- Built in output short Protection Function
- Built in current limit function
- TO263-5L package
General Description The XL7035 is a 150KHz fixed frequency PWM buck (step-down) DC/DC...
