Xinlong Semiconductor Technology XL9021
The XL9021 is a 150KHz fixed frequency PWM synchronous buck DC/DC converter, capable of driving a 2.5A load with high efficiency, low ripple and excellent line and load regulation. The XL9021 has built-in thermal shutdown, current limit protection and output short protection function and so on. When the output short protection function happens, the operation frequency will be reduced about from 150KHz to 40KHz.| Part No. | XL9021 |
|---|---|
| Datasheet | XL9021 Download |
| Manufacturer |  Xinlong Semiconductor Technology |
| Description | 2.5A 150KHz 40V Synchronous Buck DC to DC Converter |
| Buy | Stock & Price |
FEATURES
● Operation Voltage：5V~36V● Output Adjustable from 1.25V to 30V
● Maximum Duty Cycle up to 90%
● Feedback Voltage Accuracy ±2%
● Fixed 150KHz Switching Frequency
● 2.5A Constant Output Current Capability
● Internal Optimize Power MOSFET
● High efficiency up to 95%
● Max. Output power up to 10W
● Excellent line and load regulation
● EN PIN TTL shutdown capability
● Built in thermal shutdown function
● Built in current limit protection function
● Built in output short protection function
● Temperature Grade 1: -40 ℃ to 125 ℃ Ambient Operating Temperature Range
● Device HBM ESD Classification Level Class3A

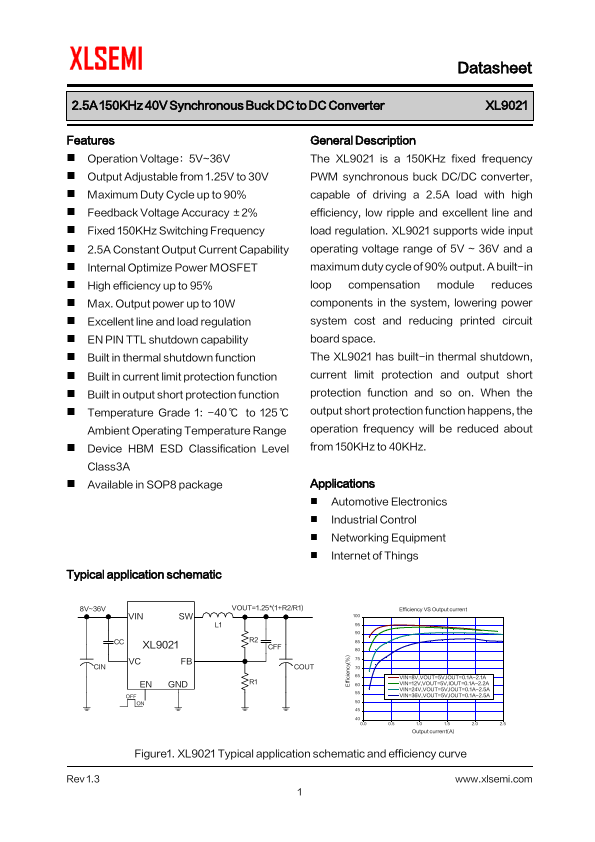

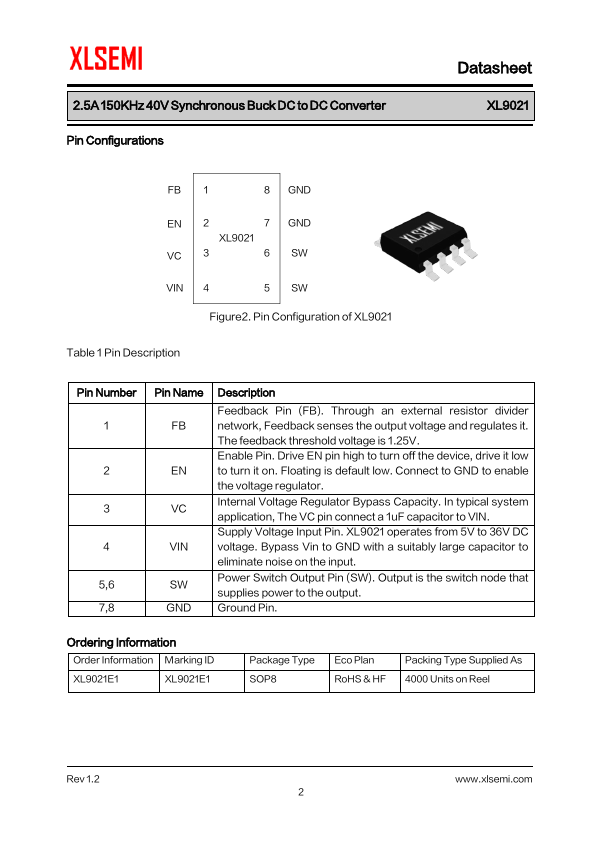

● Available in SOP8 package Typical application schematic
GENERAL DESCRIPTION
XL9021 supports wide input operating voltage range of 5V ~ 36V and a maximum duty cycle of 90% output. A built-in loop compensation module reduces components in the system, lowering power system cost and reducing printed circuit board space.APPLICATIONS
● Automotive Electronics● Industrial Control...
