XR829MQ Description
1 GND1 - Ground connetctions 2 ANT 3 GND2 I/O 2.4 GHz RF input/output - Ground connetctions 4 NC1 - Floating(Don’t connected to ground) 5 NC2 - Floating(Don’t connected to ground) 6 BT-WAKE I 7 BT-HOST-WAKE O Host wakes up Bluetooth subsystem Bluetooth.

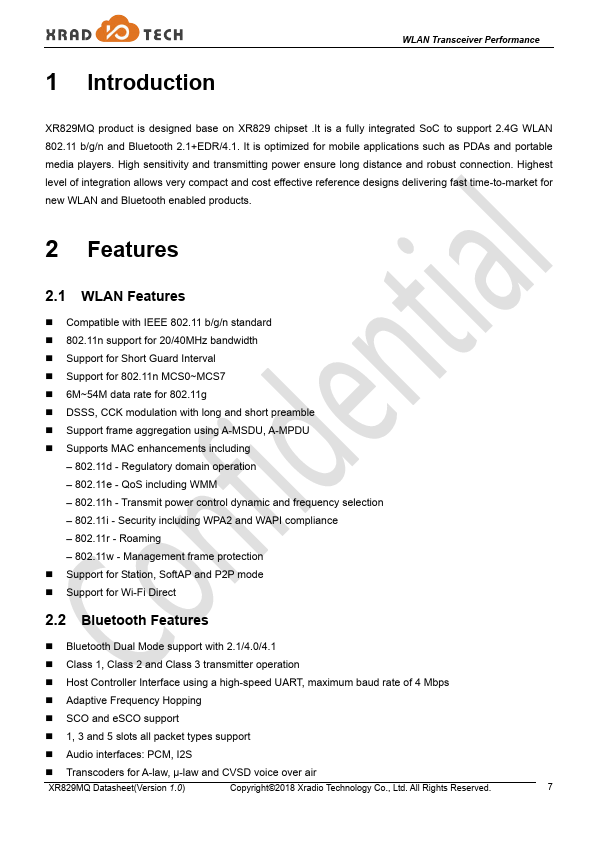

XR829MQ Key Features
- patible with IEEE 802.11 b/g/n standard
- 802.11n support for 20/40MHz bandwidth
- Support for Short Guard Interval
- Support for 802.11n MCS0~MCS7
- 6M~54M data rate for 802.11g
- DSSS, CCK modulation with long and short preamble
- Support frame aggregation using A-MSDU, A-MPDU
- Supports MAC enhancements including
- 802.11d
- Regulatory domain operation
XR829MQ Applications
- patible with IEEE 802.11 b/g/n standard
- 802.11n support for 20/40MHz bandwidth
- Support for Short Guard Interval
- Support for 802.11n MCS0~MCS7
- 6M~54M data rate for 802.11g
- DSSS, CCK modulation with long and short preamble
