XR2203A Datasheet | XySemi

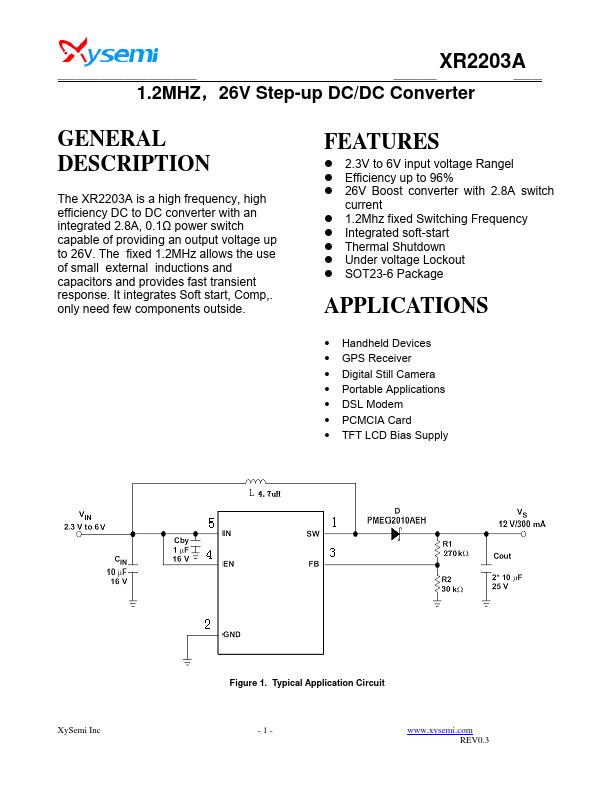

_____________________________ _________ 1.2MHZ，26V Step-up DC/DC Converter ______ GENERAL DESCRIPTION The XR2203A is a high frequency, high efficiency DC to DC converter with an integrated 2.8A, 0.1Ω power switch capable of providing an output voltage up to 26V. The fixed 1.2MHz allows the use of small external inductions and capacitors and provides fast transient response. It integrates Soft start, p,. only need few ponents outside. Features z 2.3V to 6V input voltage Rangel z Efficiency up to 96% z 26V Boost converter with 2.8A switch current z 1.2Mhz fixed Switching Frequency z Integrated soft-start z Thermal Shutdown z Under voltage Lockout z SOT23-6 Package APPLICATI...
