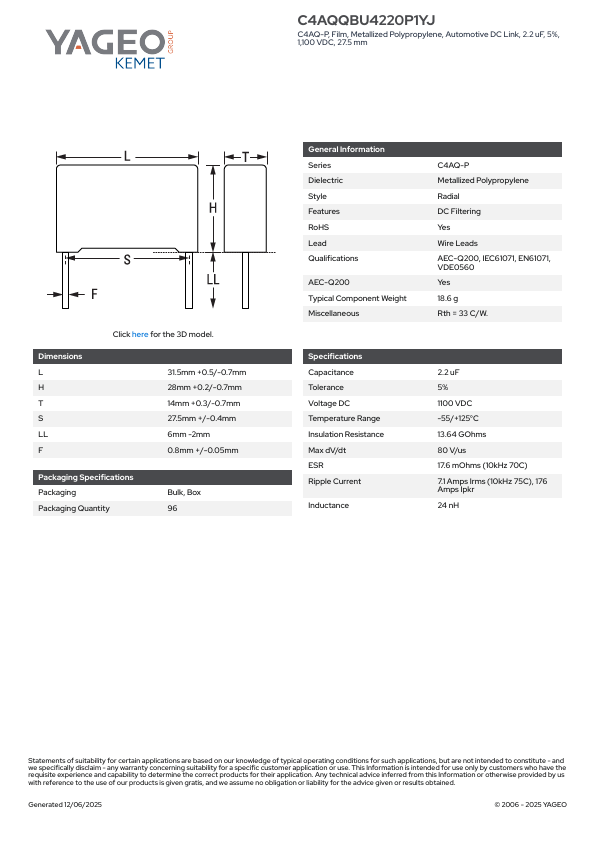

C4AQQBU4220P1YJ Datasheet | YAGEO

C4AQ-P, Film, Metallized Polypropylene, Automotive DC Link, 2.2 u F, 5%, 1,100 VDC, 27.5 mm D​i​m​e​n​s​i​o​n​s L H T S L​L F Click here for the 3D model. 31.5mm +0.5/-0.7mm 28mm +0.2/-0.7mm 14mm +0.3/-0.7mm 27.5mm +/-0.4mm 6mm -2mm 0.8mm +/-0.05mm Packaging Specifications P​a​c​k​a​g​i​n​g Packaging Quantity Bulk, Box 9​6 General Information S​e​r​i​e​s D​i​e​l​e​c​t​r​i​c S​t​y​l​e F​e​a​t​u​r​e​s R​o​H​S L​e​a​d Q​u​a​l​i​f​i​c​a​t​i​o​n​s A​E​C​-​Q​2​0​0 Typical ponent Weight M​i​s​c​e​l​l​a​n​e​o​u​s C​4​A​Q​-​P Metallized Polypropylene R​a​d​i​a​l DC Filtering Y​e​s Wire Leads AEC-Q200, IEC61071, EN61071, VDE0560 Y​e​s 18.6 g Rth = 33 C/W. S​p​e​c​i​f​i​c​a​t​i​o​n​s C​a​p​a​c​i​t​a​n​c​e T​o​l​e​r​a​n​c​e Voltage DC Temperature Range Insulation Resistance Max d V/dt E​S​R Ripple Current I​n​d​u​c​t​a​n​c​e 2.2 u F 5​% 1100 VDC -​5​5​/​+​1​2​5​°​C 13.64 GOhms 80 V/us 17.6 m Ohms (10k Hz 70C) 7.1 Amps Irms (10k Hz 75C), 176 Amps Ipkr 24 n H Statements of suitability for certain applications are based on our knowledge of typical operating conditions for such applications, but are not intended to constitute - and we specifically disclaim - any warranty concerning suitability for a specific customer application or use. This Information is intended for use only by customers who have the requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise provided by us with reference to the use of our products is given gratis, and we assume no obligation or liability for the advice given or results obtained. Generated 12/06/2025 ©︎ 2006 - 2025...
