25SQ045 Datasheet | Yangjie Electronic

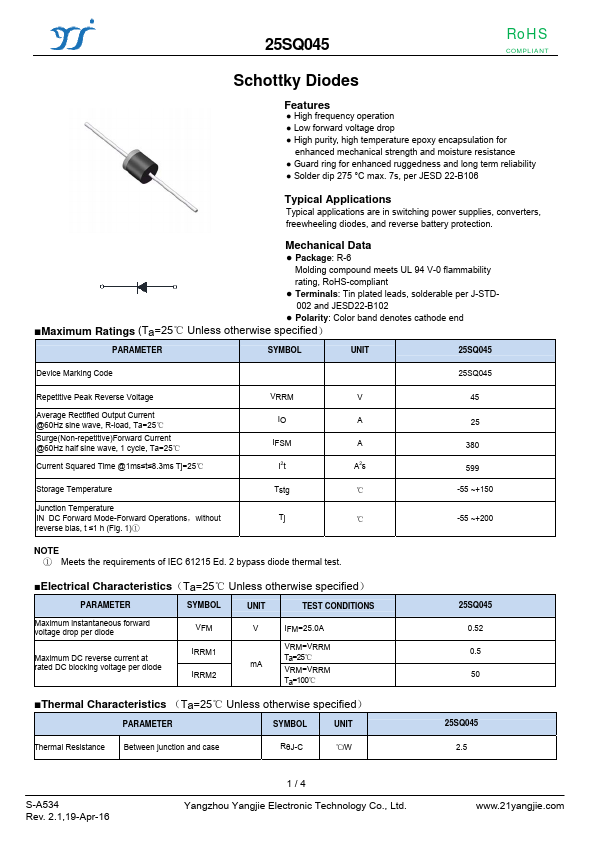

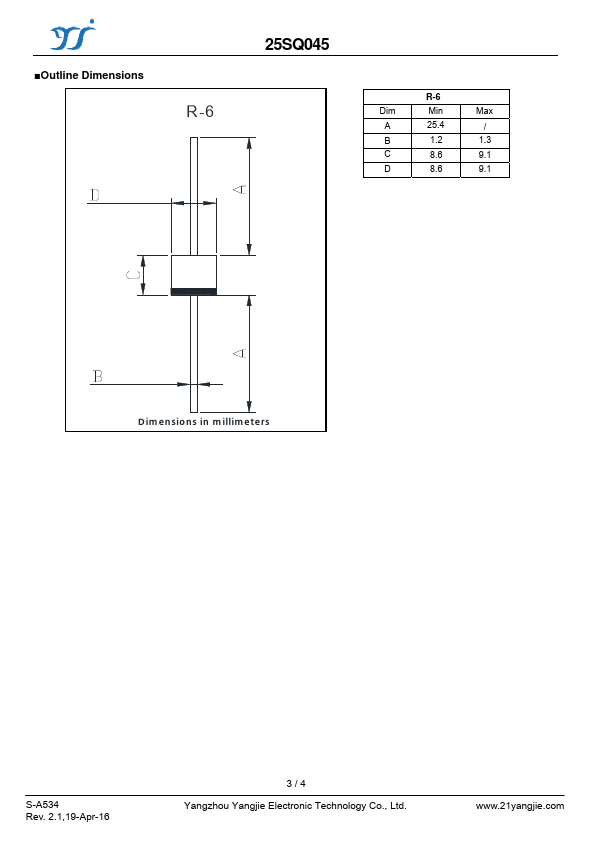

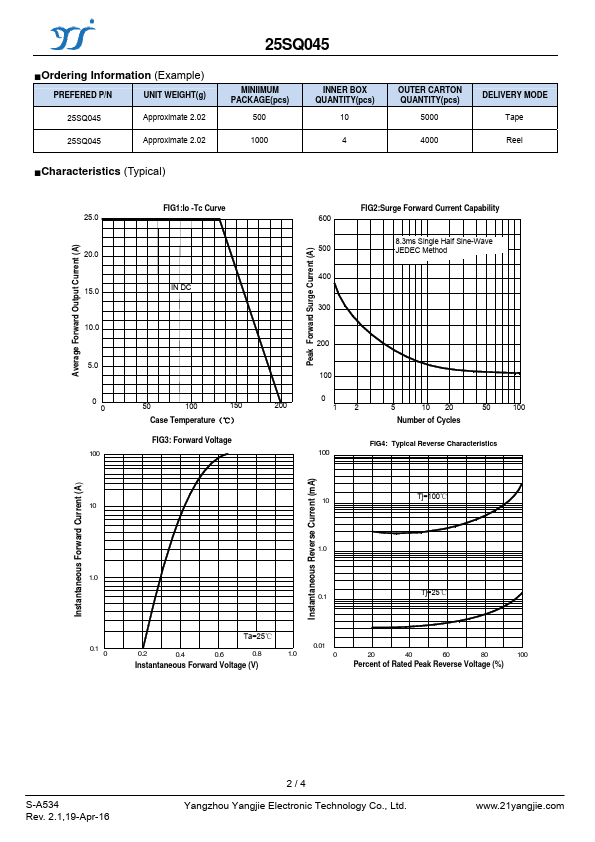

Features - High frequency operation - Low forward voltage drop - High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance - Guard ring for enhanced ruggedness and long term reliability - Solder dip 275 °C max. 7s, per JESD 22-B106 Typical Applications Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. Mechanical Data - Package: R-6 Molding pound meets UL 94 V-0 flammability rating, Ro HS-pliant - Terminals: Tin plated leads, solderable per J-STD- 002 and JESD22-B102 - Polarity: Color band denotes cathode end - Maximum Ratings (Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT Device Marking Code Repetitive Peak Reverse Voltage Average Rectified Output Current @60Hz sine wave, R-load, Ta=25℃ Surge(Non-repetitive)Forward Current @60Hz half sine wave, 1 cycle, Ta=25℃ Current Squared Time @1ms≤t≤8.3ms Tj=25℃ VRRM IFSM I2t A2s Storage Temperature Tstg ℃ Junction Temperature IN DC Forward Mode-Forward Operations，without Tj ℃ reverse bias, t ≤1 h (Fig. 1)① 45 25 380 599 -55 ~+150 -55 ~+200 NOTE ① Meets the requirements of IEC 61215 Ed. 2 bypass diode thermal...
