Full PDF Text Transcription for 2SC4097 (Reference)
Note: Below is a high-fidelity text extraction (approx. 800 characters) for
2SC4097. For precise diagrams, and layout, please refer to the original PDF.

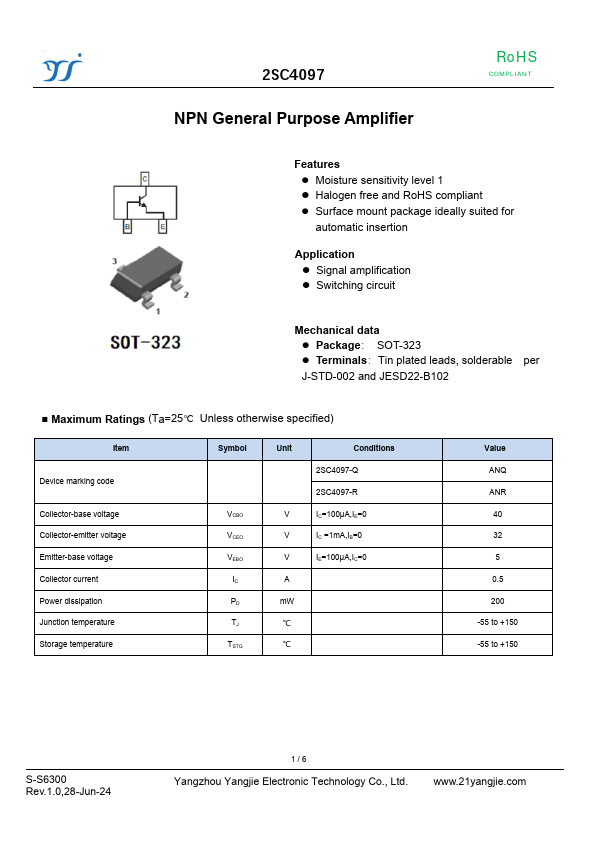

2SC4097 NPN General Purpose Amplifier RoHS COMPLIANT Features Moisture sensitivity level 1 Halogen free and RoHS compliant Surface mount package ideally suited for ...
View more extracted text
en free and RoHS compliant Surface mount package ideally suited for automatic insertion Application ？Sig？n？al？amplification ？Sw？itc？h？ing circuit Mechanical data Package： SOT-323 Terminals：Tin plated leads, solderable per J-STD-002 and JESD22-B102 ■ Maximum Ratings (Ta=25℃ Unless otherwise specified) Item Device marking code Collector-base voltage Collector-emitter voltage Emitter-base voltage Collector current Power dissipation Junction temperature Storage temperature Symbol VCBO VCEO VEBO IC PD TJ TSTG Unit V V V A mW ℃ ℃ Conditions 2SC4097-Q 2SC4097-R IC=100μA,IE=0 IC =1mA,IB=0 IE=100μA,IC=0 Value ANQ ANR 40 3
2SC4097 Datasheet
