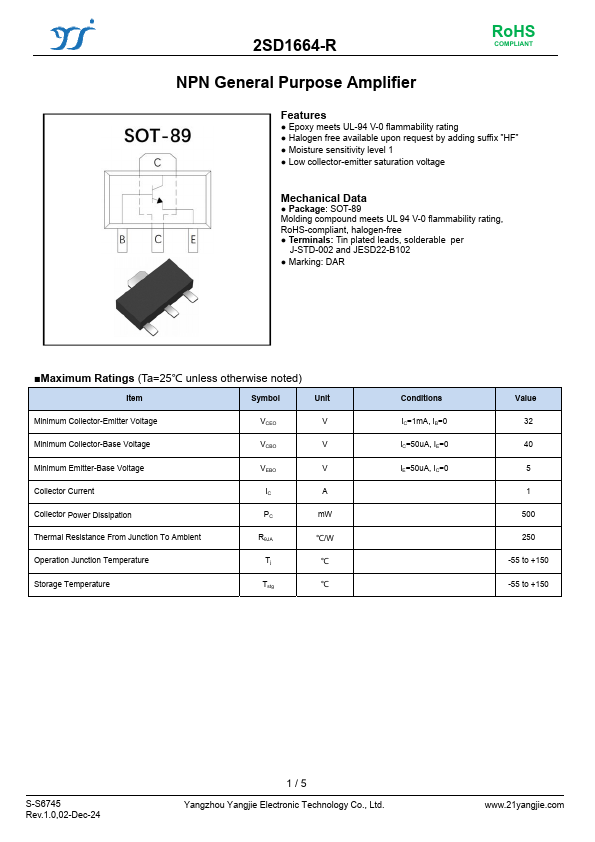

Yangzhou Yangjie 2SD1664-R
NPN General Purpose Amplifier
| Part No. | 2SD1664-R |
|---|---|
| Datasheet | 2SD1664-R Download |
| Manufacturer |  Yangzhou Yangjie |
| Description | NPN General Purpose Amplifier |
| Buy | Stock & Price |
FEATURES
● Epoxy meets UL-94 V-0 flammability rating● Halogen free available upon request by adding suffix ”HF”
● Moisture sensitivity level 1
● Low collector-emitter saturation voltage
MECHANICAL DATA
● Package: SOT-89 Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free● Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102
● Marking: DAR
●
MAXIMUM RATINGS
(Ta=25℃ unless otherwise noted) Item Symbol Unit Minimum Collector-Emitter Voltage VCEO V Minimum Collector-Base Voltage VCBO V Minimum Emitter-Base Voltage VEBO V Collector Current Collector Power Dissipation IC A PC mW Thermal Resistance From Junction To Ambient RθJA ℃/W Operation Junction Temperature Tj ℃ Storage Temperature Tstg ℃ Conditions IC=1mA, IB=0 IC=50uA, IE=0 IE=50uA, IC=0 Value 32 40 5 1 500 250 -55 to +150 -55 to +150 S-S6745 Rev.1.0,02-Dec-24 1/5 Yangzhou Yangjie Electronic Technology Co., Ltd. 2SD1664-R●

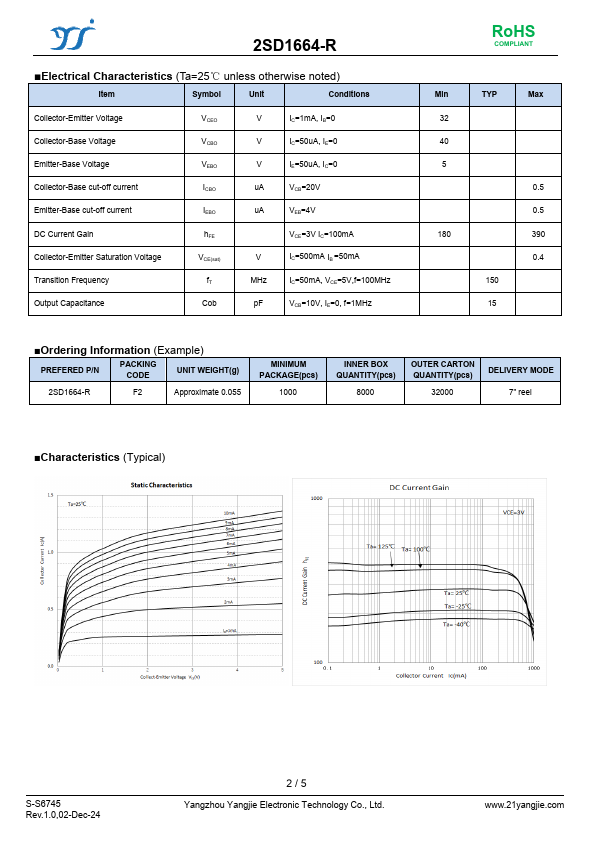

ELECTRICAL CHARACTERISTICS
(Ta=25℃ unless otherwise noted) Item S...
