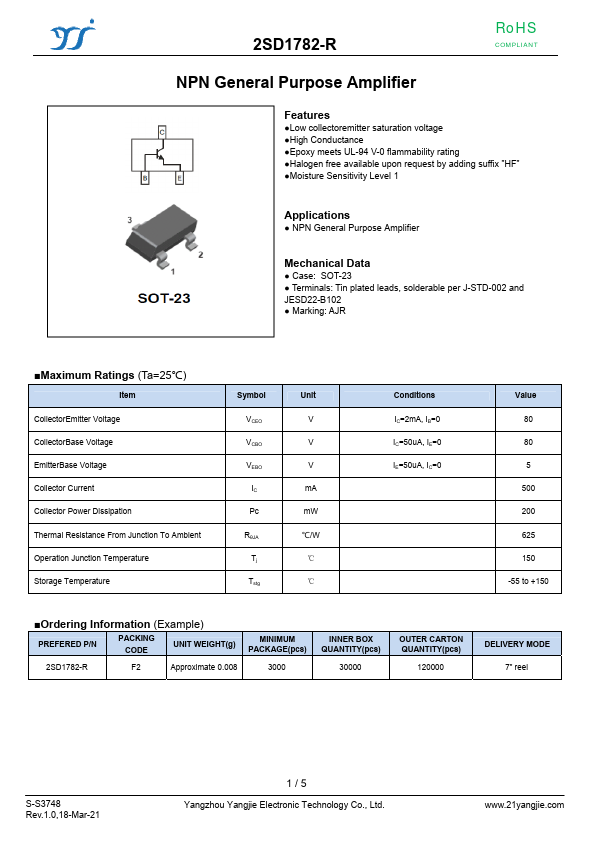

2SD1782-R
Features
- Low collectoremitter saturation voltage
- High Conductance
- Epoxy meets UL-94 V-0 flammability rating
- Halogen free available upon request by adding suffix ”HF”
- Moisture Sensitivity Level 1
Applications
- NPN General Purpose Amplifier
Mechanical Data
- Case: SOT-23
- Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Marking: AJR
- Maximum Ratings (Ta=25℃)
Item Collector Emitter Voltage Collector Base Voltage Emitter Base Voltage Collector Current Collector Power Dissipation Thermal Resistance From Junction To Ambient Operation Junction Temperature Storage Temperature
Symbol VCEO VCBO VEBO IC Pc RθJA Tj Tstg
Unit V V V m A m W ℃/W
℃ ℃
Conditions IC=2m A, IB=0 IC=50u A, IE=0 IE=50u A, IC=0
Value 80 80 5 500 200 625 150
-55 to +150
- Ordering Information (Example)
PREFERED P/N
PACKING CODE
UNIT WEIGHT(g)
MINIMUM PACKAGE(pcs)
F2
Approximate 0.008
INNER BOX QUANTITY(pcs)
OUTER CARTON QUANTITY(pcs)
DELIVERY MODE 7”...
