BA592

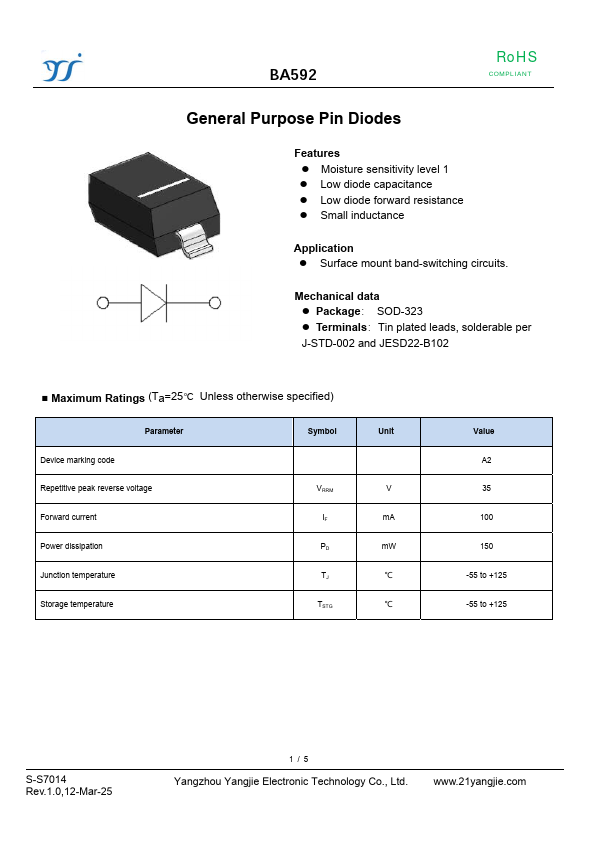

Features
- Moisture sensitivity level 1
- Low diode capacitance
- Low diode forward resistance
- Small inductance
Application
- Surface mount band-switching circuits.
Mechanical data
- Package： SOD-323
- Terminals：Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Maximum Ratings (Ta=25℃ Unless otherwise specified)
Parameter Device marking code Repetitive peak reverse voltage Forward current Power dissipation Junction temperature Storage temperature
Symbol
VRRM IF PD TJ
TSTG
Unit
V m A m W ℃ ℃
Value A2 35 100 150
-55 to +125 -55 to +125
S-S7014 Rev.1.0,12-Mar-25
1/5
Yangzhou Yangjie Electronic Technology Co., Ltd.
.21yangjie.

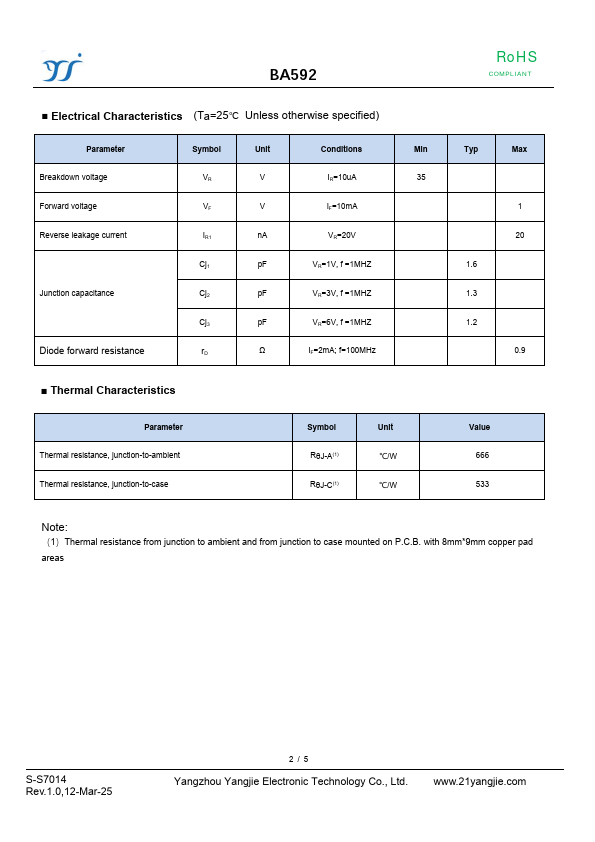

- Electrical Characteristics (Ta=25℃ Unless otherwise specified)
Parameter Breakdown voltage Forward voltage Reverse leakage current
Junction capacitance
Diode forward resistance
Symbol
Unit
Conditions
Min
IR=10u A
IF=10m A
IR1 n A
VR=20V
Cj1 p...
