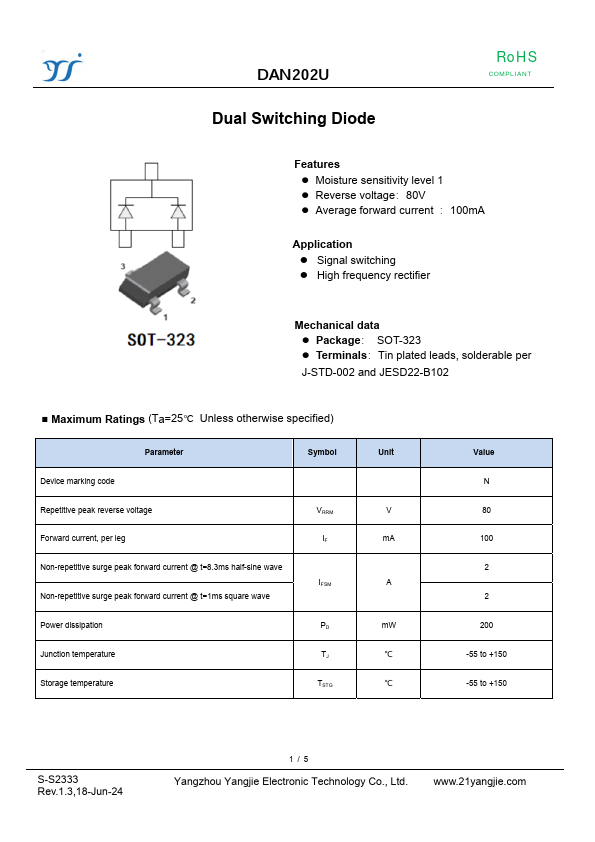

DAN202U Overview
DAN202U Dual Switching Diode RoHS PLIANT.
DAN202U Key Features
- Moisture sensitivity level 1
- Reverse voltage：80V
- Average forward current ：100mA
- Signal switching
- High frequency rectifier
- Package： SOT-323
- Terminals：Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Maximum Ratings (Ta=25℃ Unless otherwise specified)
- 55 to +150 -55 to +150

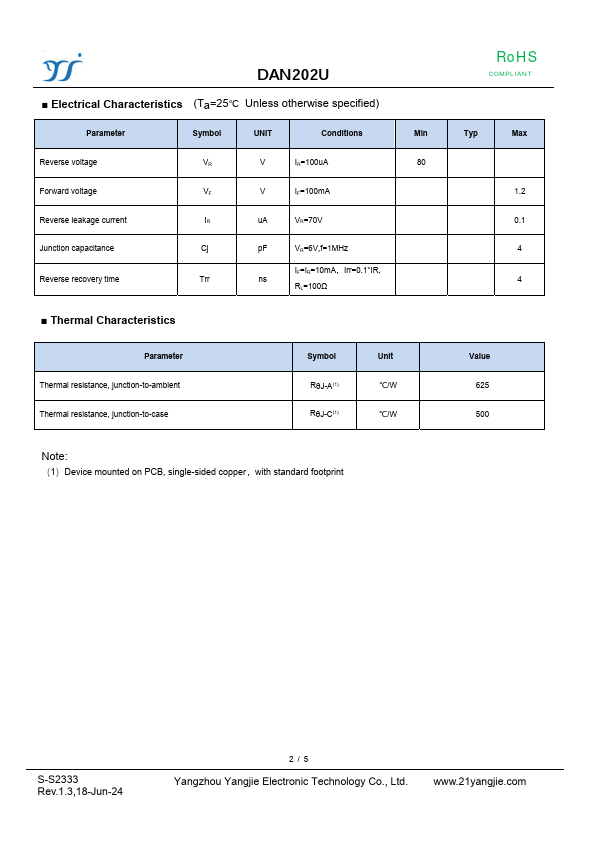

- Electrical Characteristics (Ta=25℃ Unless otherwise specified)
