DTA114EUA
DTA114EUA is PNP Digital Transistors manufactured by Yangjie Electronic.

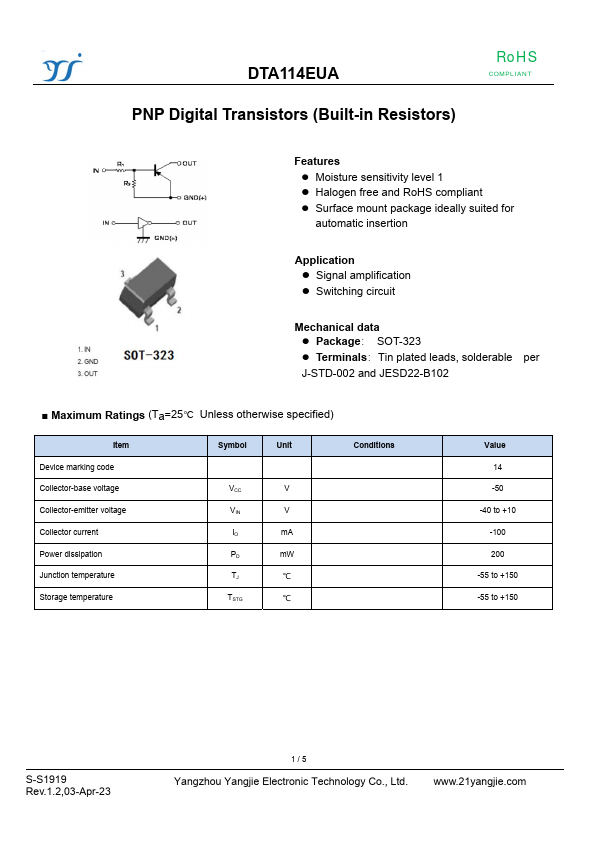

Features
- Moisture sensitivity level 1
- Halogen free and Ro HS pliant
- Surface mount package ideally suited for automatic insertion
Application
- Signal amplification
- Switching circuit
Mechanical data
- Package： SOT-323
- Terminals：Tin plated leads, solderable per J-STD-002 and JESD22-B102
- Maximum Ratings (Ta=25℃ Unless otherwise specified)
Item Device marking code Collector-base voltage Collector-emitter voltage Collector current Power dissipation Junction temperature Storage temperature
Symbol
Unit
VCC VIN IO PD TJ TSTG
V V m A m W ℃ ℃
Conditions
Value 14 -50
-40 to +10 -100 200
-55 to +150 -55 to +150
S-S1919 Rev.1.2,03-Apr-23
1/5
Yangzhou Yangjie Electronic Technology Co., Ltd.
.21yangjie.

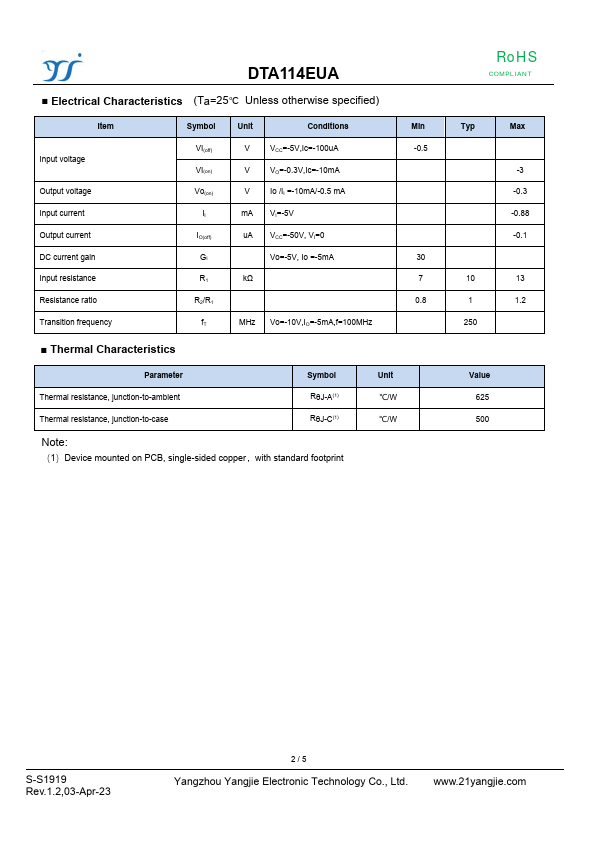

- Electrical Characteristics (Ta=25℃ Unless otherwise specified)
Item
Input voltage
Output voltage Input current Output current DC current gain Input resistance Resistance ratio Transition frequency
Symbol VI(off) VI(on) Vo(on) II IO(off) GI R1 R2/R1 f T
Unit V V V m A u A kΩ
Conditions VCC=-5V,Ic=-100u A VO=-0.3V,Ic=-10m A Io /II =-10m A/-0.5 m A VI=-5V VCC=-50V, VI=0 Vo=-5V, Io =-5m A
MHz Vo=-10V,IO=-5m A,f=100MHz
Min -0.5
30 7 0.8
- Thermal Characteristics
Parameter
Symbol
Thermal resistance, junction-to-ambient
RθJ-A(1)
Thermal resistance, junction-to-case...
