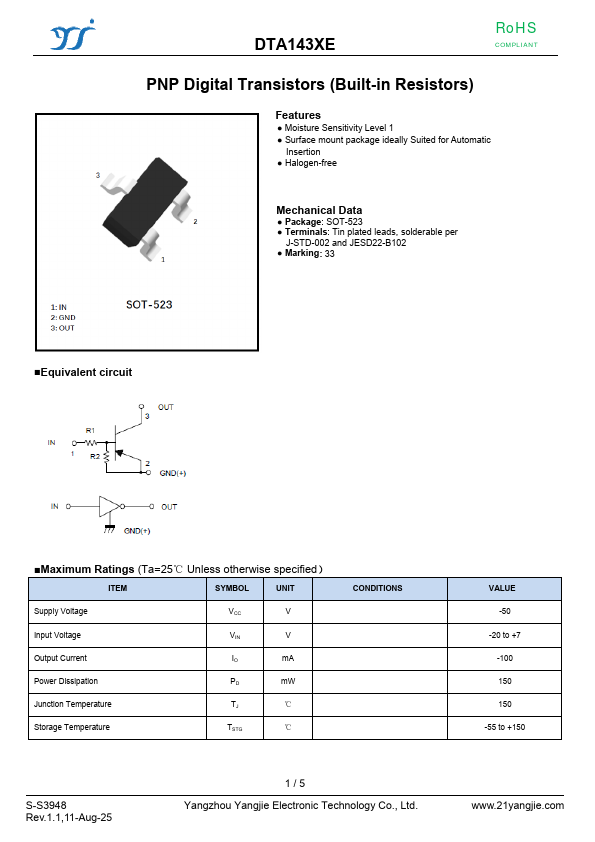

DTA143XE
DTA143XE is PNP Digital Transistors manufactured by Yangjie Electronic.
Features
- Moisture Sensitivity Level 1
- Surface mount package ideally Suited for Automatic
Insertion
- Halogen-free
Mechanical Data
- Package: SOT-523
- Terminals: Tin plated leads, solderable per
J-STD-002 and JESD22-B102
- Marking: 33
- Equivalent circuit
- Maximum Ratings (Ta=25℃ Unless otherwise specified）
ITEM
SYMBOL
UNIT
Supply Voltage Input Voltage
Output Current
IO m A
Power Dissipation
PD m W
Junction Temperature
℃
Storage Temperature
TSTG
℃
CONDITIONS
S-S3948 Rev.1.1,11-Aug-25
1/5 Yangzhou Yangjie Electronic Technology Co., Ltd.
VALUE -50
-20 to +7 -100 150 150
-55 to +150
.21yangjie.

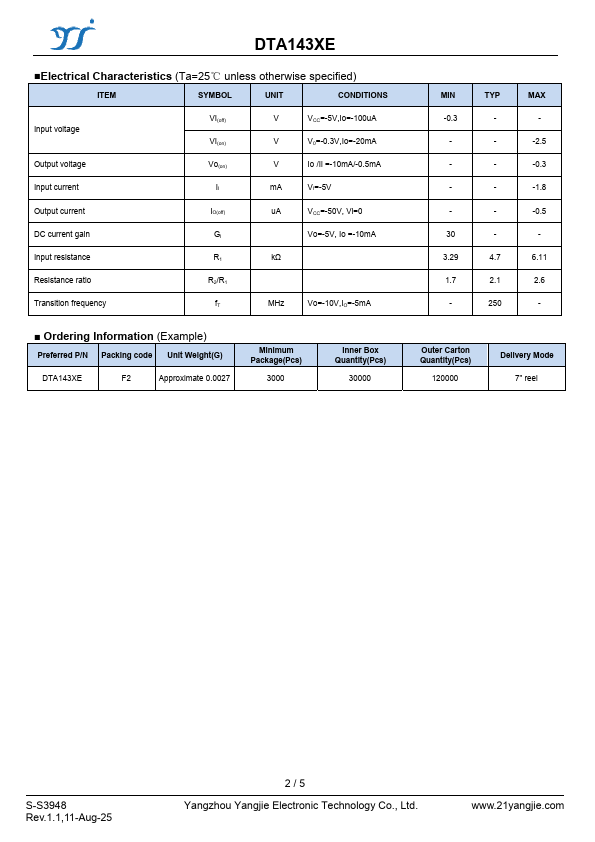

- Electrical Characteristics (Ta=25℃ unless otherwise specified)
ITEM
SYMBOL...
