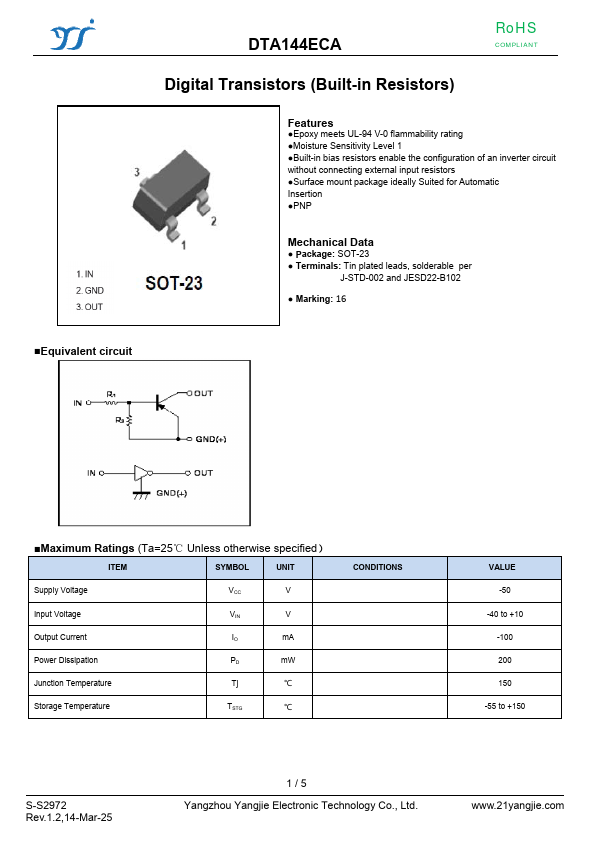

DTA144ECA
DTA144ECA is Digital Transistors manufactured by Yangjie Electronic.
Features
- Epoxy meets UL-94 V-0 flammability rating
- Moisture Sensitivity Level 1
- Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors
- Surface mount package ideally Suited for Automatic Insertion
- PNP
Mechanical Data
- Package: SOT-23
- Terminals: Tin plated leads, solderable per
J-STD-002 and JESD22-B102
- Marking: 16
- Equivalent circuit
- Maximum Ratings (Ta=25℃ Unless otherwise specified）
ITEM
SYMBOL
UNIT
Supply Voltage
Input Voltage
Output Current
IO m A
Power Dissipation
PD m W
Junction Temperature
Tj
℃
Storage Temperature
TSTG
℃
CONDITIONS
VALUE -50
-40 to +10 -100 200 150
-55 to +150
S-S2972 Rev.1.2,14-Mar-25
1/5 Yangzhou Yangjie Electronic Technology Co., Ltd.
.21yangjie.

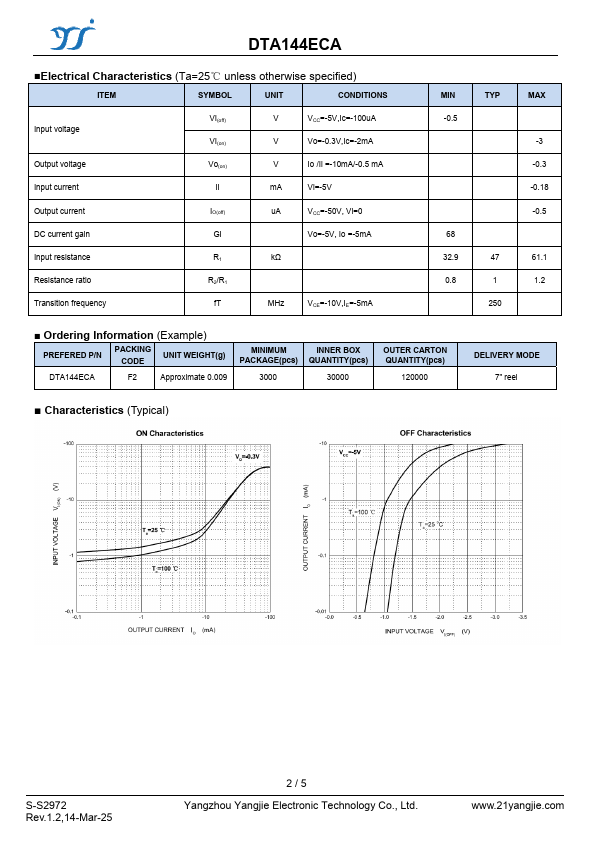

- Electrical Characteristics (Ta=25℃ unless otherwise...
