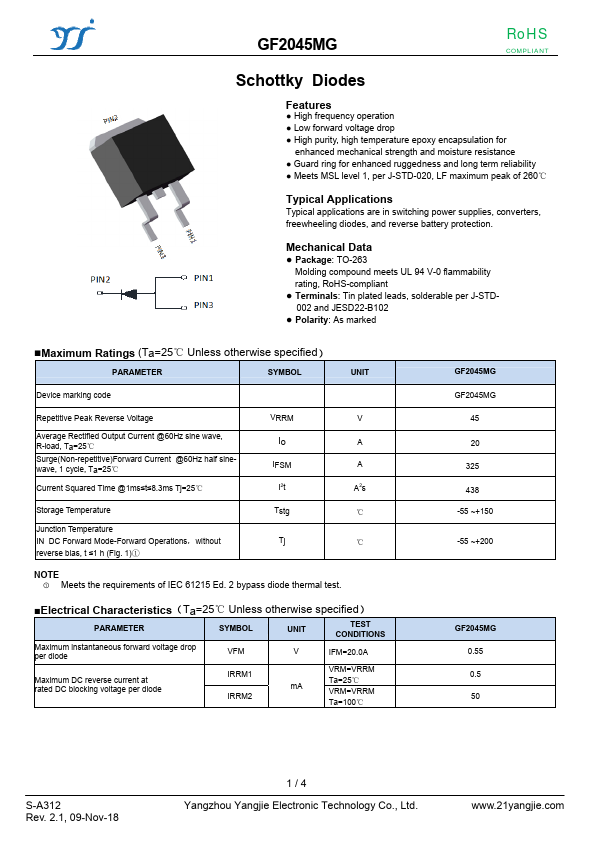

GF2045MG Datasheet | Yangjie Electronic

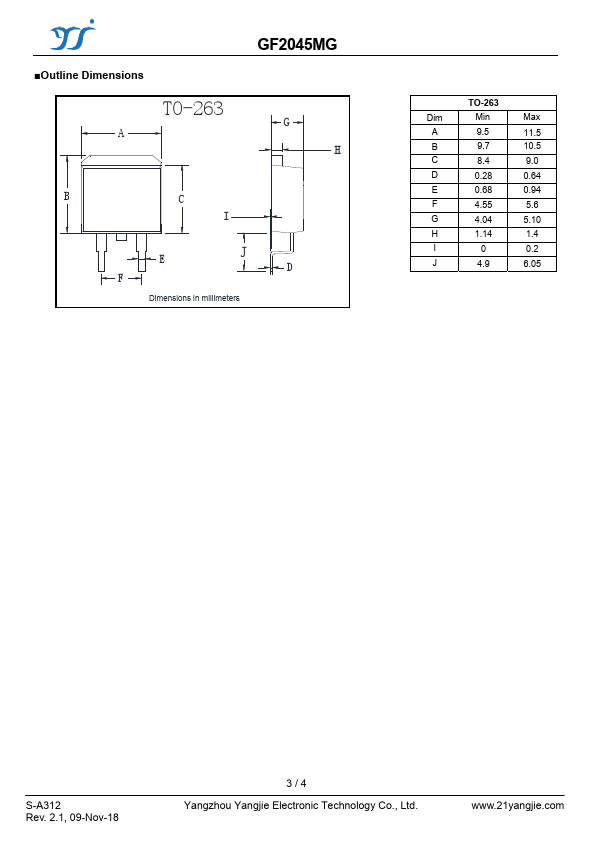

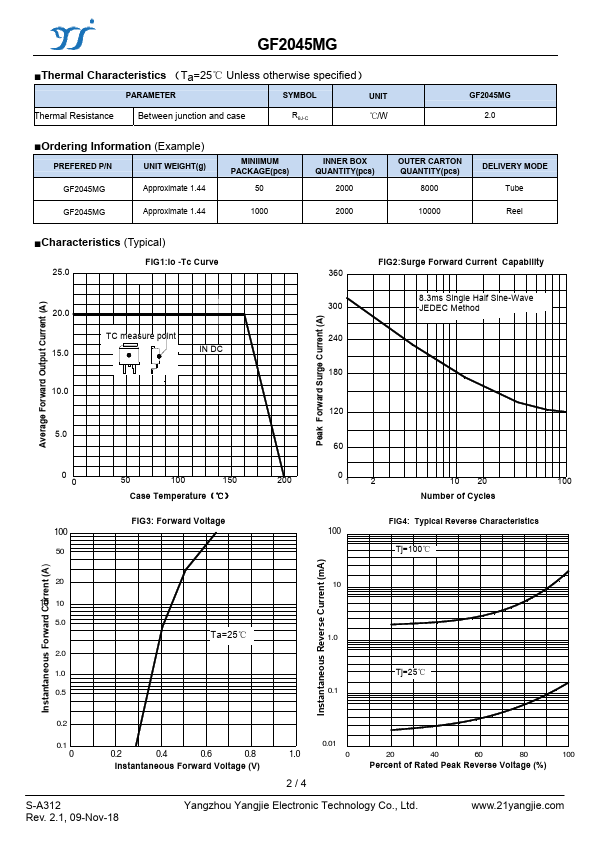

Features - High frequency operation - Low forward voltage drop - High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance - Guard ring for enhanced ruggedness and long term reliability - Meets MSL level 1, per J-STD-020, LF maximum peak of 260℃ Typical Applications Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection. Mechanical Data - Package: TO-263 Molding pound meets UL 94 V-0 flammability rating, Ro HS-pliant - Terminals: Tin plated leads, solderable per J-STD- 002 and JESD22-B102 - Polarity: As marked - Maximum Ratings (Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT Device marking code Repetitive Peak Reverse Voltage VRRM Average Rectified Output Current @60Hz sine wave, R-load, Ta=25℃ Io Surge(Non-repetitive)Forward Current @60Hz half sinewave, 1 cycle, Ta=25℃ IFSM Current Squared Time @1ms≤t≤8.3ms Tj=25℃ I2t A2s Storage Temperature Tstg ℃ Junction Temperature IN DC Forward Mode-Forward Operations，without Tj ℃ reverse bias, t ≤1 h (Fig. 1)① NOTE ① Meets the requirements of IEC 61215 Ed. 2 bypass diode thermal test. - Electrical Characteristics（Ta=25℃ Unless otherwise...
