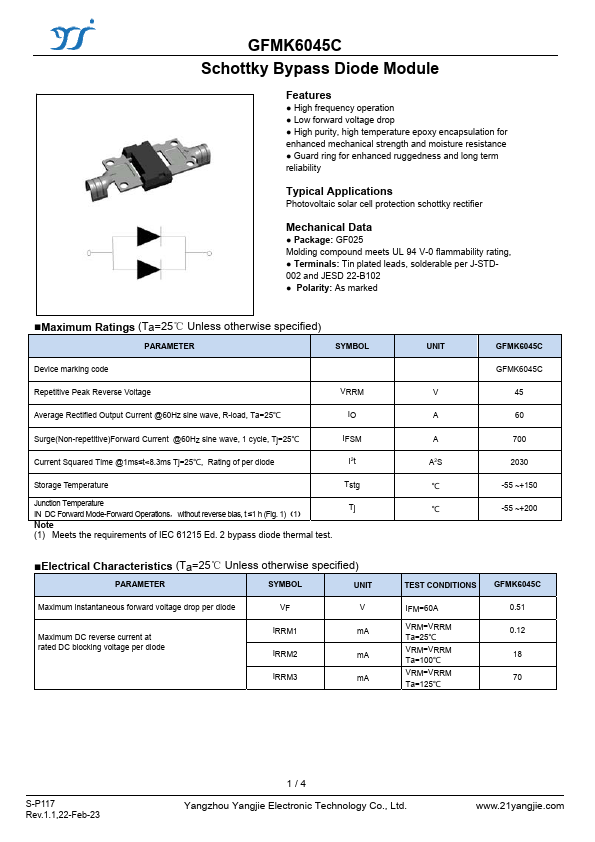

GFMK6045C
GFMK6045C is Schottky Bypass Diode Module manufactured by Yangjie Electronic.
Features
- High frequency operation
- Low forward voltage drop
- High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
- Guard ring for enhanced ruggedness and long term reliability
Typical Applications
Photovoltaic solar cell protection schottky rectifier
Mechanical Data
- Package: GF025 Molding pound meets UL 94 V-0 flammability rating,
- Terminals: Tin plated leads, solderable per J-STD002 and JESD 22-B102
- Polarity: As marked
- Maximum Ratings (Ta=25℃ Unless otherwise specified)
PARAMETER
SYMBOL
Device marking code
Repetitive Peak Reverse Voltage
VRRM
Average Rectified Output Current @60Hz sine wave, R-load, Ta=25℃ Surge(Non-repetitive)Forward Current @60Hz sine wave, 1 cycle, Tj=25℃ Current Squared Time @1ms≤t<8.3ms Tj=25℃, Rating of per diode
IO IFSM
I2t
Storage Temperature
Tstg
Junction Temperature IN DC Forward Mode-Forward Operations，without reverse bias, t ≤1 h (Fig. 1)（1）
Tj
Note
(1) Meets the requirements of IEC 61215 Ed. 2 bypass diode thermal test.
- Electrical Characteristics (Ta=25℃ Unless otherwise specified)
PARAMETER
SYMBOL
UNIT
Maximum instantaneous forward voltage drop per diode
Maximum DC reverse current at rated DC blocking voltage per diode
IRRM1 m A
IRRM2 m A
IRRM3 m A
UNIT
V A A A2S ℃ ℃
GFMK6045C...
