MBR0520L Datasheet | Yangjie Electronic

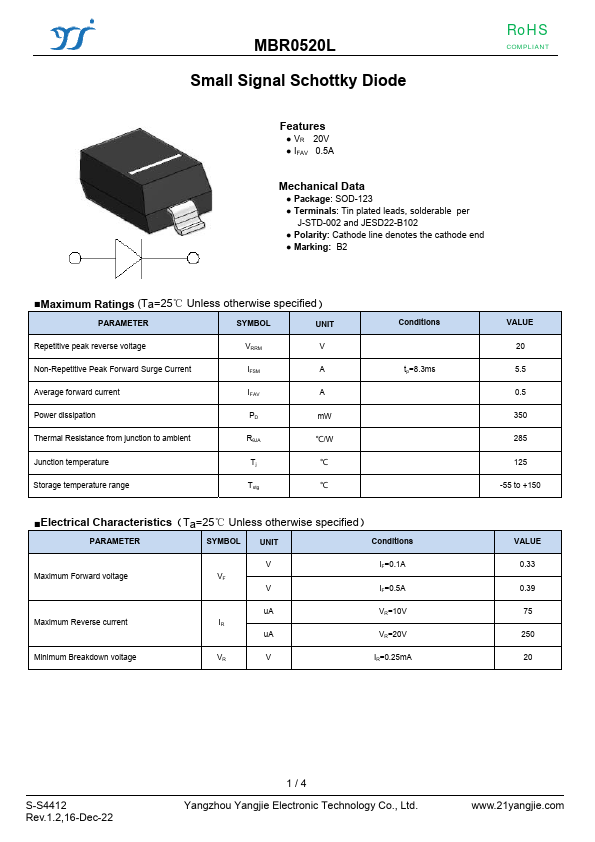

Features - VR 20V - IFAV 0.5A Mechanical Data - Package: SOD-123 - Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 - Polarity: Cathode line denotes the cathode end - Marking: B2 - Maximum Ratings (Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT Repetitive peak reverse voltage VRRM Non-Repetitive Peak Forward Surge Current IFSM Average forward current IFAV Power dissipation PD m W Thermal Resistance from junction to ambient RθJA ℃/W Junction temperature Tj ℃ Storage temperature range Tstg ℃ Conditions tp=8.3ms - Electrical Characteristics（Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT Conditions Maximum Forward voltage V...
