MBR0530 Datasheet Schottky Rectifier

Manufacturer: Yangjie Electronic

Overview: MBR0520 THRU MBR0540 RoHS PLIANT Schottky Rectifier.

This datasheet includes multiple variants, all published together in a single manufacturer document.

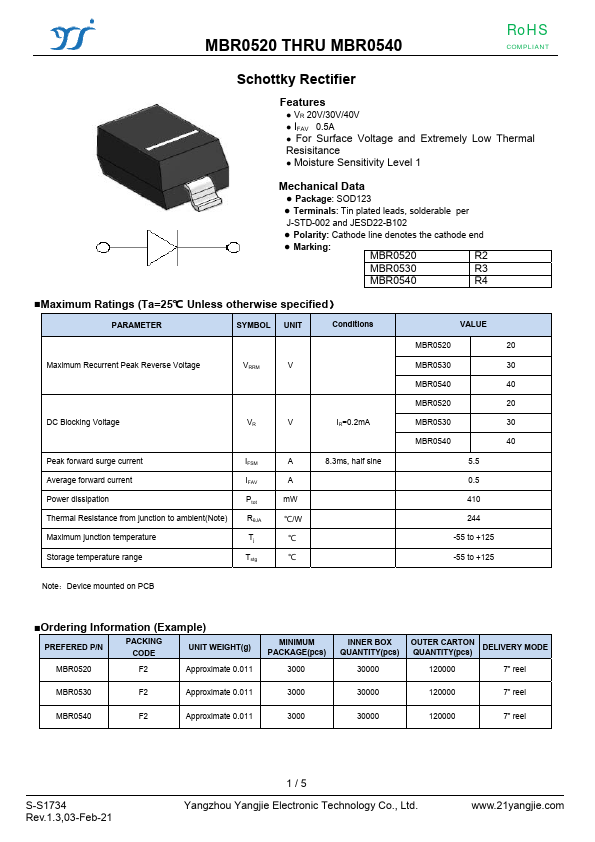

MBR0530 datasheet preview

Datasheet Details

Part number	MBR0530
Manufacturer	Yangjie Electronic
File Size	584.25 KB
Description	Schottky Rectifier
Datasheet	MBR0530 MBR0520 Datasheet (PDF)

Key Features

VR 20V/30V/40V.
IFAV 0.5A.
For Surface Voltage and Extremely Low Thermal Resisitance.
Moisture Sensitivity Level 1 Mechanical Data.
Package: SOD123.
Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102.
Polarity: Cathode line denotes the cathode end 　.
Marking: MBR0520 R2 MBR0530 R3 MBR0540 R4.
Maximum Ratings (Ta=25℃ Unless otherwise specified）.
