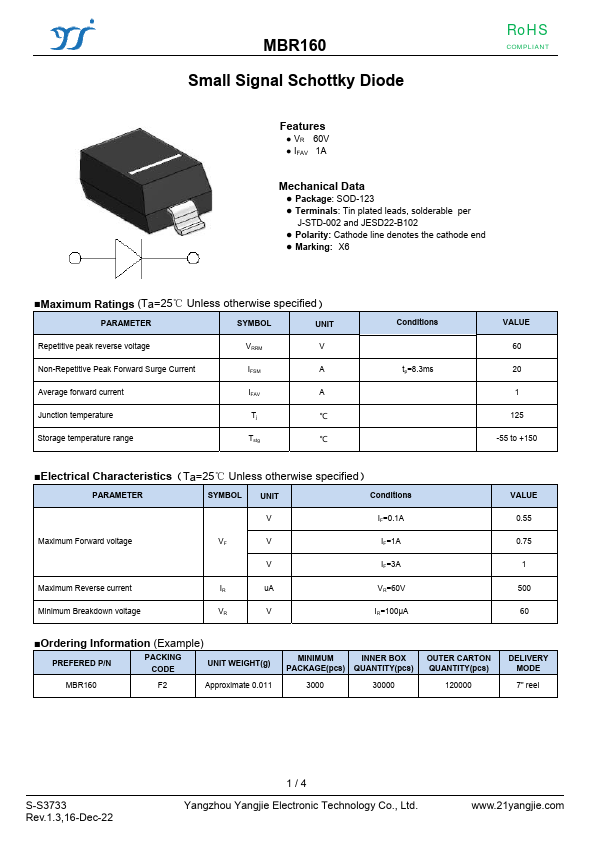

MBR160
MBR160 is Small Signal Schottky Diode manufactured by Yangjie Electronic.
Features
- VR 60V
- IFAV 1A
Mechanical Data

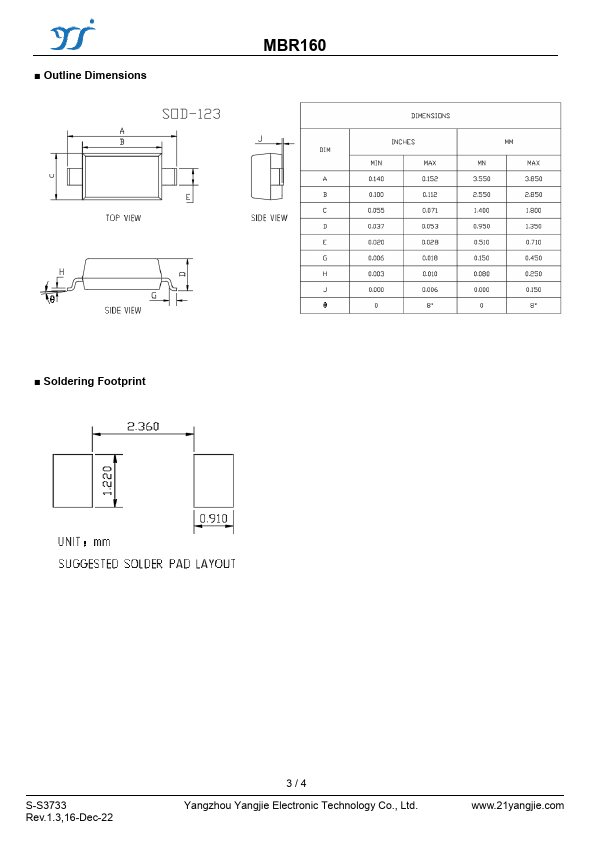

- Package: SOD-123
- Terminals: Tin plated leads, solderable per
J-STD-002 and JESD22-B102
- Polarity: Cathode line denotes the cathode end
- Marking: X6
- Maximum Ratings (Ta=25℃ Unless otherwise specified）
PARAMETER
SYMBOL
UNIT
Repetitive peak reverse voltage
VRRM
Non-Repetitive Peak Forward Surge Current
IFSM
Average forward current
IFAV
Junction temperature
Tj
℃
Storage temperature range
Tstg
℃
Conditions tp=8.3ms
VALUE 60 20 1 125
-55 to +150
- Electrical Characteristics（Ta=25℃ Unless otherwise specified）
PARAMETER
SYMBOL UNIT
Conditions
IF=0.1A
Maximum Forward...
