MK3045 Datasheet | Yangjie Electronic

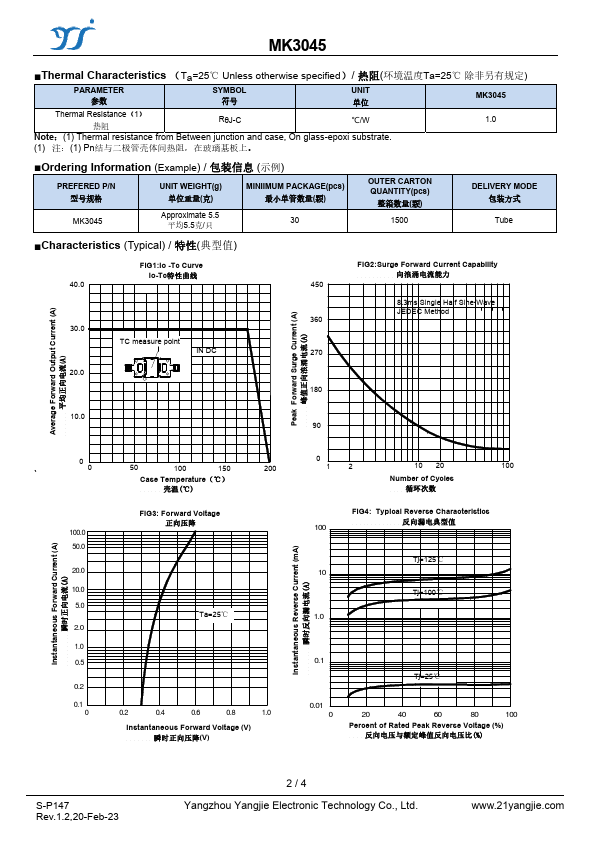

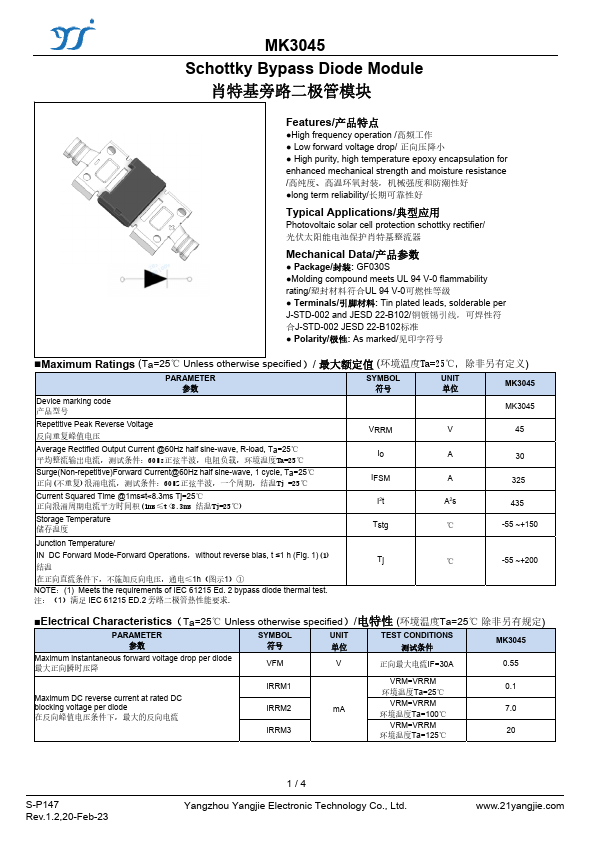

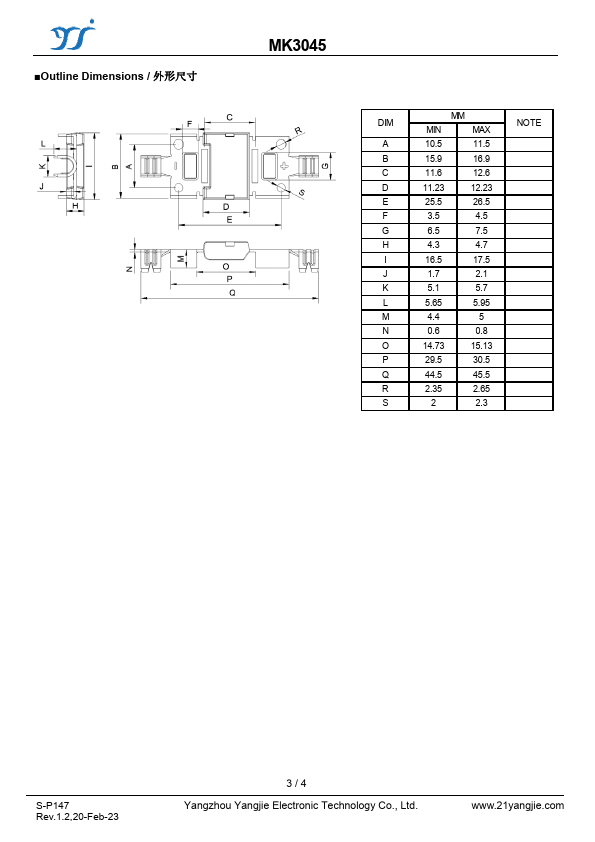

Features /产品特点 - High frequency operation /高频工作 - Low forward voltage drop/ 正向压降小 - High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance /高纯度、高温环氧封装，机械强度和防潮性好 - long term reliability/长期可靠性好 Typical Applications/典型应用 Photovoltaic solar cell protection schottky rectifier/ 光伏太阳能电池保护肖特基整流器 Mechanical Data/产品参数 - Package/封装: GF030S - Molding pound meets UL 94 V-0 flammability rating/塑封材料符合UL 94 V-0可燃性等级 - Terminals/引脚材料: Tin plated leads, solderable per J-STD-002 and JESD 22-B102/铜镀锡引线，可焊性符 合J-STD-002 JESD 22-B102标准 - Polarity/极性: As marked/见印字符号 - Maximum Ratings (Ta=25℃ Unless otherwise specified）/ 最大额定值 (环境温度Ta=25℃，除非另有定义) PARAMETER 参数 SYMBOL 符号 UNIT 单位 Device marking code 产品型号 Repetitive Peak Reverse Voltage 反向重复峰值电压 VRRM Average Rectified Output Current @60Hz half sine-wave, R-load, Ta=25℃ 平均整流输出电流，测试条件：60Hz正弦半波，电阻负载，环境温度Ta=25℃ Io Surge(Non-repetitive)Forward Current@60Hz half sine-wave, 1 cycle, Ta=25℃ 正向(不重复)浪涌电流，测试条件：60HZ正弦半波，一个周期，结温Tj =25℃ IFSM Current Squared Time @1ms≤t<8.3ms Tj=25℃ 正向浪涌周期电流平方时间积(1ms≤t<8.3ms 结温Tj=25℃) I2t A2s Storage Temperature 储存温度 Tstg ℃ -55 ~+150 Junction Temperature/ IN DC Forward Mode-Forward Operations，without reverse bias, t ≤1 h (Fig. 1)(1) Tj 结温 在正向直流条件下，不施加反向电压，通电≤1h（图示1）①...
