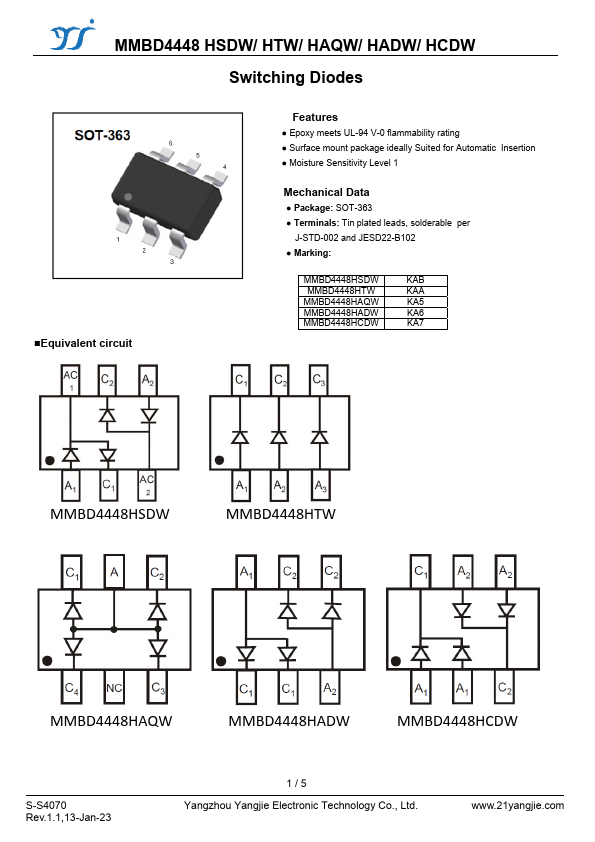

MMBD4448HAQW
MMBD4448HAQW is Switching Diodes manufactured by Yangjie Electronic.
- Part of the MMBD4448 comparator family.
- Part of the MMBD4448 comparator family.
Features
- Epoxy meets UL-94 V-0 flammability rating
- Surface mount package ideally Suited for Automatic Insertion
- Moisture Sensitivity Level 1
Mechanical Data
- Package: SOT-363
- Terminals: Tin plated leads, solderable per
J-STD-002 and JESD22-B102
- Marking:
MMBD4448HSDW MMBD4448HTW MMBD4448HAQW MMBD4448HADW MMBD4448HCDW
KAB KAA KA5 KA6 KA7
MMBD4448HSDW
MMBD4448HTW
MMBD4448HADW
MMBD4448HCDW
S-S4070 Rev.1.1,13-Jan-23
1/5 Yangzhou Yangjie Electronic Technology Co., Ltd.
.21yangjie.
MMBD4448 HSDW/ HTW/ HAQW/ HADW/ HCDW

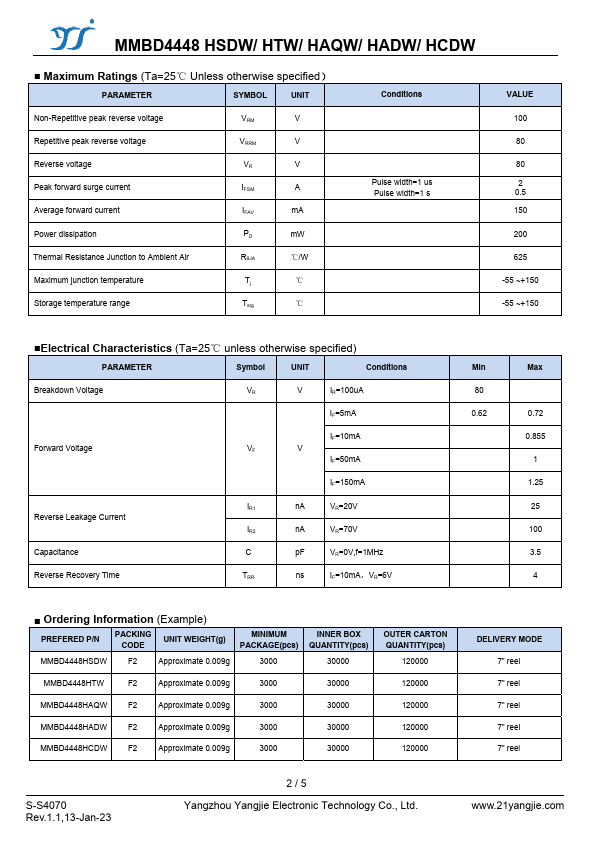

- Maximum Ratings (Ta=25℃ Unless otherwise specified）
PARAMETER
SYMBOL
UNIT
Non-Repetitive peak reverse voltage
Repetitive peak reverse voltage
VRRM
Reverse voltage
Peak forward surge current
IFSM
Average forward current
IFAV m A
Power dissipation
PD m W
Thermal Resistance Junction to Ambient...
