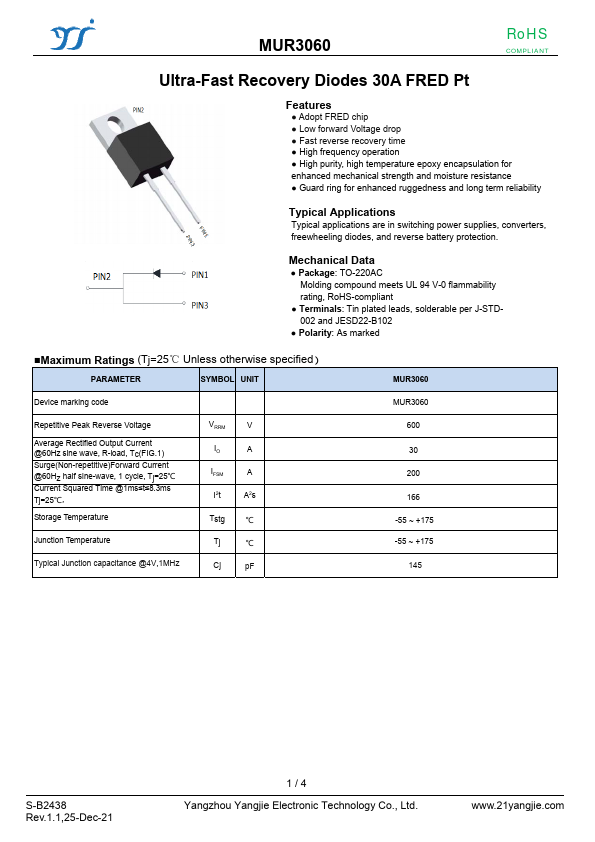

MUR3060
Features
- Adopt FRED chip
- Low forward Voltage drop
- Fast reverse recovery time
- High frequency operation
- High purity, high temperature epoxy encapsulation for enhanced mechanical strength and moisture resistance
- Guard ring for enhanced ruggedness and long term reliability
Typical Applications
Typical applications are in switching power supplies, converters, freewheeling diodes, and reverse battery protection.
Mechanical Data
- Package: TO-220AC Molding pound meets UL 94 V-0 flammability rating, Ro HS-pliant
- Terminals: Tin plated leads, solderable per J-STD002 and JESD22-B102
- Polarity: As marked
- Maximum Ratings (Tj=25℃ Unless otherwise specified）
PARAMETER
SYMBOL UNIT
Device marking code
Repetitive Peak Reverse Voltage
Average Rectified Output Current @60Hz sine wave, R-load, Tc(FIG.1) Surge(Non-repetitive)Forward Current @60Hz half sine-wave, 1 cycle, Tj=25℃ Current Squared Time @1ms≤t≤8.3ms Tj=25℃，
Storage Temperature
Junction Temperature
Typical Junction...
