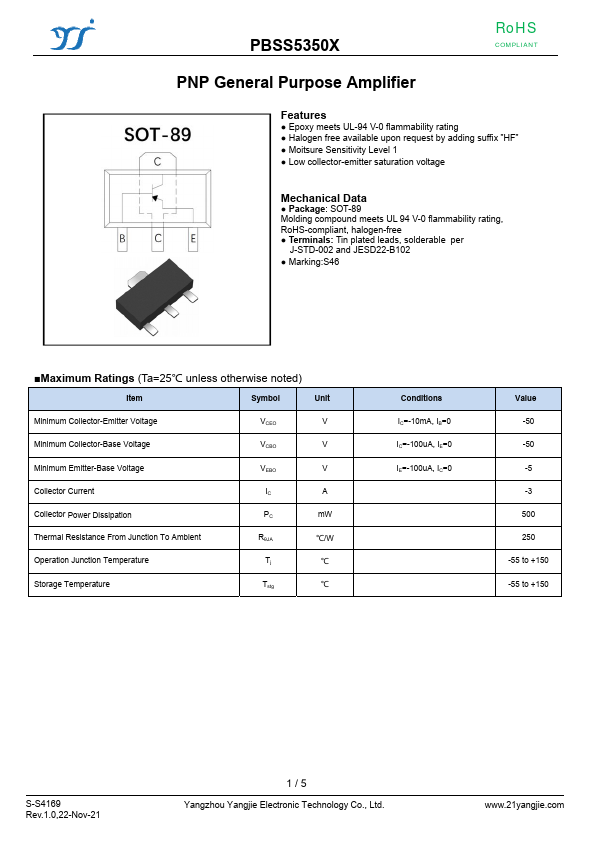

PBSS5350X Datasheet PNP General Purpose Amplifier

Manufacturer: Yangjie Electronic

Overview: PBSS5350X RoHS COMPLIANT PNP General Purpose Amplifier.

Datasheet Details

Part number	PBSS5350X
Manufacturer	Yangjie Electronic
File Size	474.03 KB
Description	PNP General Purpose Amplifier
Datasheet	PBSS5350X-YangzhouYangjie.pdf

Key Features

Epoxy meets UL-94 V-0 flammability rating.
Halogen free available upon request by adding suffix ”HF”.
Moitsure Sensitivity Level 1.
Low collector-emitter saturation voltage Mechanical Data.
Package: SOT-89 Molding compound meets UL 94 V-0 flammability rating, RoHS-compliant, halogen-free.
Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102.
Marking:S46.
Maximum Ratings (Ta=25℃ unless otherwise noted) Item Symbol Unit Minimum Collect.
