RB521S-30
RB521S-30 is Schottky Barrier Diode manufactured by Yangjie Electronic.

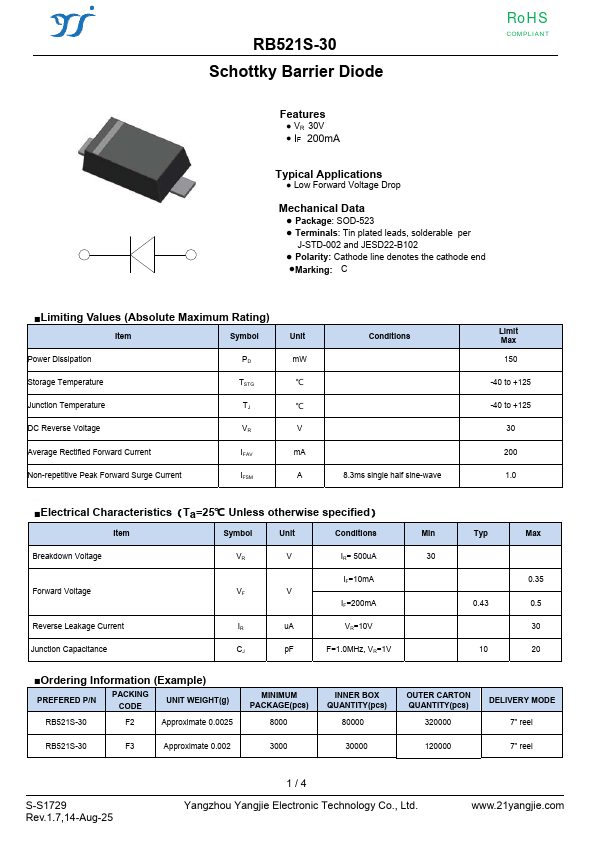

Features
- VR 30V
- IF 200m A
Typical Applications
- Low Forward Voltage Drop
Mechanical Data

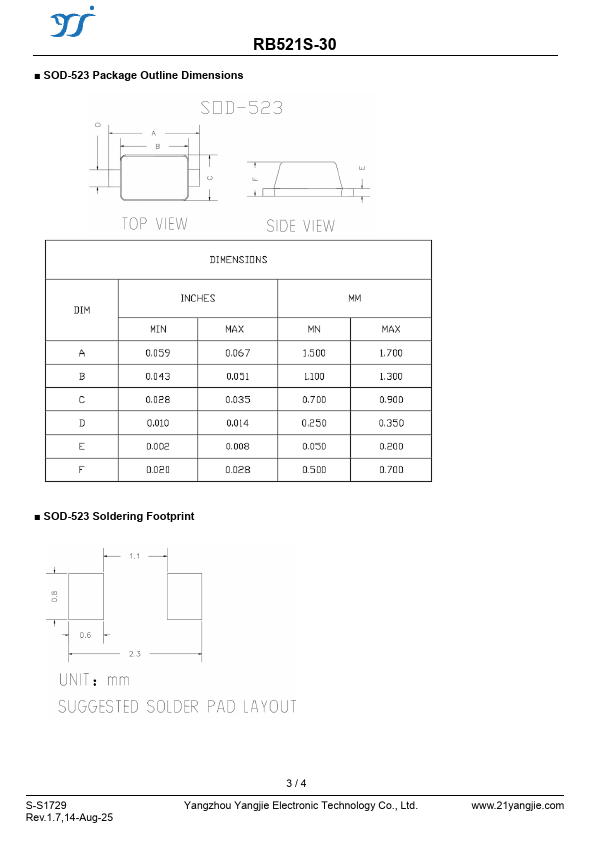

- Package: SOD-523
- Terminals: Tin plated leads, solderable per
J-STD-002 and JESD22-B102
- Polarity: Cathode line denotes the cathode end
- Marking: C
- Limiting Values (Absolute Maximum Rating)
Item
Symbol
Power Dissipation
Storage Temperature
TSTG
Junction Temperature
DC Reverse Voltage
Average Rectified Forward Current
IFAV
Non-repetitive Peak Forward Surge Current
IFSM
Unit m W ℃ ℃
V m A A
Conditions 8.3ms single half sine-wave
Limit Max 150 -40 to +125 -40 to +125
30 200 1.0

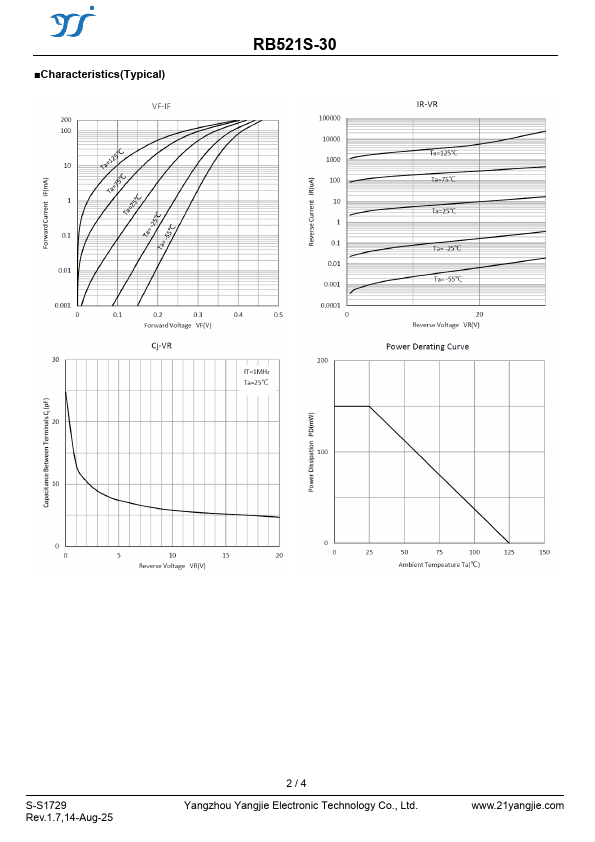

- Electrical Characteristics（Ta=25℃ Unless otherwise specified）
Item
Symbol
Unit
Conditions
Min
Typ
Max
Breakdown Voltage Forward...
