Yangzhou Yangjie SM712
ESD Protection Diode
| Part No. | SM712 |
|---|---|
| Datasheet | SM712 Download |
| Manufacturer |  Yangzhou Yangjie |
| Description | ESD Protection Diode |
| Buy | Stock & Price |

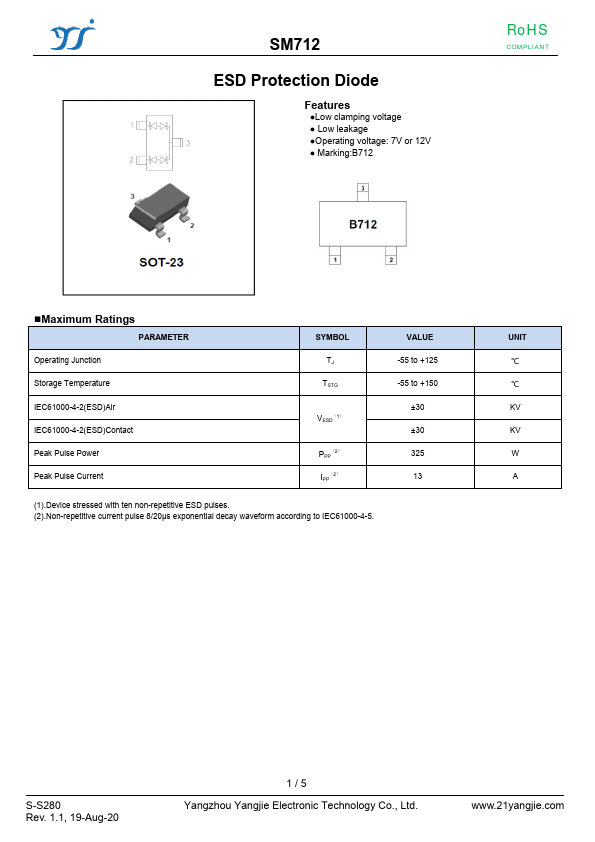

FEATURES
●Low clamping voltage● Low leakage
●Operating voltage: 7V or 12V
● Marking:B712 RoHS COMPLIANT
●
MAXIMUM RATINGS
PARAMETER Operating Junction Storage Temperature IEC61000-4-2(ESD)Air IEC61000-4-2(ESD)Contact Peak Pulse Power Peak Pulse Current SYMBOL TJ TSTG V （1） ESD P （2） PP I （2） PP (1).Device stressed with ten non-repetitive ESD pulses. (2).Non-repetitive current pulse 8/20μs exponential decay waveform according to IEC61000-4-5. VALUE -55 to +125 -55 to +150 ±30 ±30 325 13 UNIT ℃ ℃ KV KV W A S-S280 Rev. 1.1, 19-Aug-20 1/5 Yangzhou Yangjie Electronic Technology Co., Ltd. SM712●

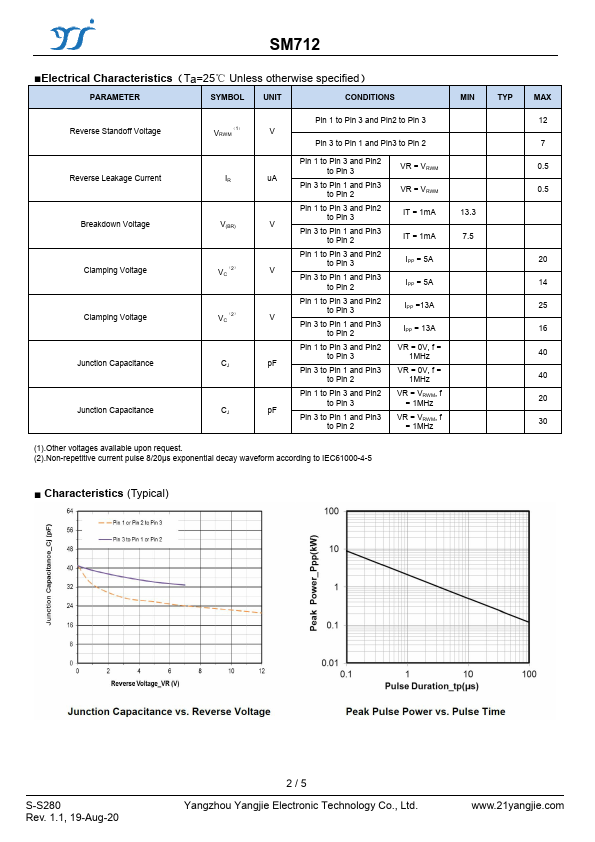

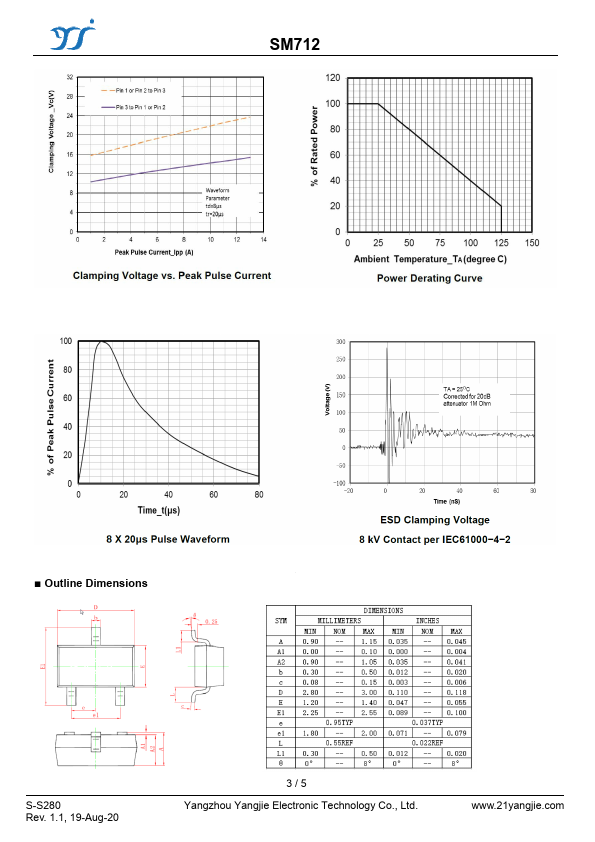

ELECTRICAL CHARACTERISTICS
（Ta=25℃ Unless otherwise specified） PARAMETER SYMBOL UNIT CONDITIONS MIN TYP MAX Pin 1 to Pin 3 and Pin2 to Pin 3 12 Reverse Standoff Voltage V （1） RWM V Pin 3 to Pin 1 and Pin3 to Pin 2 7 Pin 1 to Pin 3 and Pin2 to Pin 3 VR = VRWM 0.5 Reverse Leakage Current IR uA Pin 3 to Pin 1 and Pin3 to Pin 2 VR = VRWM 0.5 Breakdown Voltage V(BR) Pin 1 to Pin 3 and Pin2 to Pin 3 IT = 1m...
