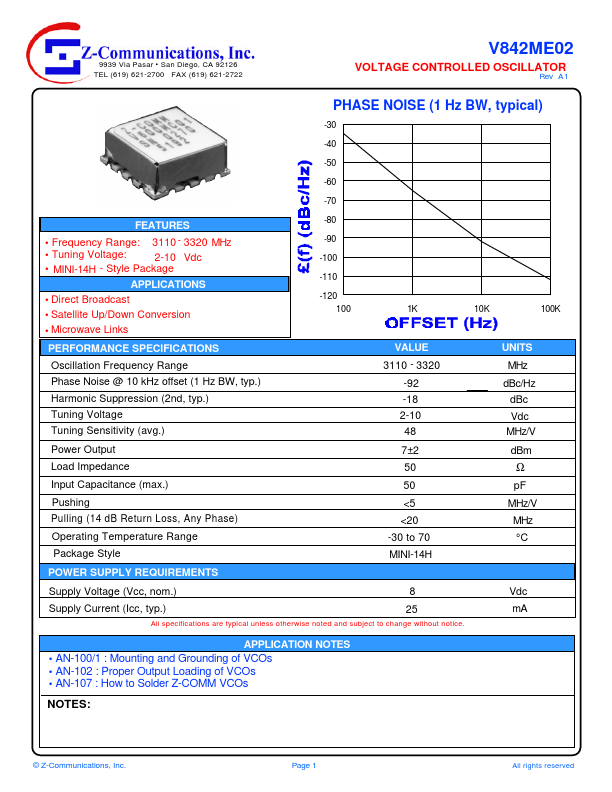

V842ME02
V842ME02 is VOLTAGE CONTROLLED OSCILLATOR manufactured by Z-Communications.
9939 Via Pasar
- San Diego, CA 92126 TEL (619) 621-2700 FAX (619) 621-2722
VOLTAGE CONTROLLED OSCILLATOR
Rev A1
PHASE NOISE (1 Hz BW, typical)
-30
-40
-50
-60
-70
Features
- Frequency Range: 3110
- 3320 MHz
- Tuning Voltage:
2-10 Vdc
- MINI-14H
- Style Package
APPLICATIONS
- Direct Broadcast
- Satellite Up/Down Conversion
- Microwave Links
PERFORMANCE SPECIFICATIONS Oscillation Frequency Range Phase Noise @ 10 kHz offset (1 Hz BW, typ.) Harmonic Suppression (2nd, typ.) Tuning Voltage Tuning Sensitivity (avg.)
Power Output Load Impedance
Input Capacitance (max.)
Pushing Pulling (14 dB Return Loss, Any Phase)
Operating Temperature Range Package Style
POWER...
