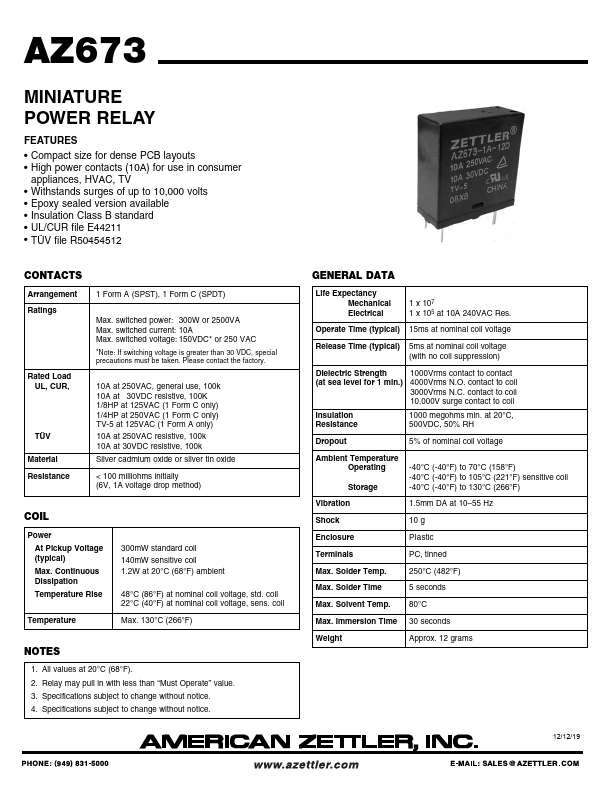

Datasheet Summary
MINIATURE
POWER RELAY
Features
- pact size for dense PCB layouts
- High power contacts (10A) for use in consumer appliances, HVAC, TV
- Withstands surges of up to 10,000 volts
- Epoxy sealed version available
- Insulation Class B standard
- UL/CUR file E44211
- TÜV file R50454512
CONTACTS
Arrangement Ratings
Rated Load UL, CUR,
TÜV Material Resistance
1 Form A (SPST), 1 Form C (SPDT)
Max. switched power: 300W or 2500VA Max. switched current: 10A Max. switched voltage: 150VDC- or 250 VAC
- Note: If switching voltage is greater than 30 VDC, special precautions must be taken. Please contact the factory.
10A at 250VAC, general use, 100k 10A at 30VDC resistive, 100K 1/8HP at 125VAC...
