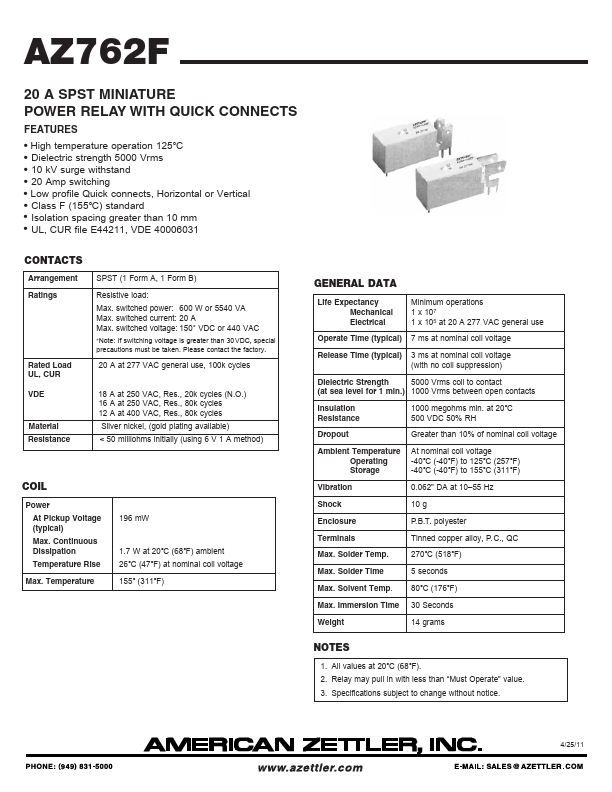

ZETTLER AZ762F
20A SPST MINIATURE POWER RELAY
| Part No. | AZ762F |
|---|---|
| Datasheet | AZ762F Download |
| Manufacturer |  ZETTLER |
| Description | 20A SPST MINIATURE POWER RELAY |
| Buy | Stock & Price |

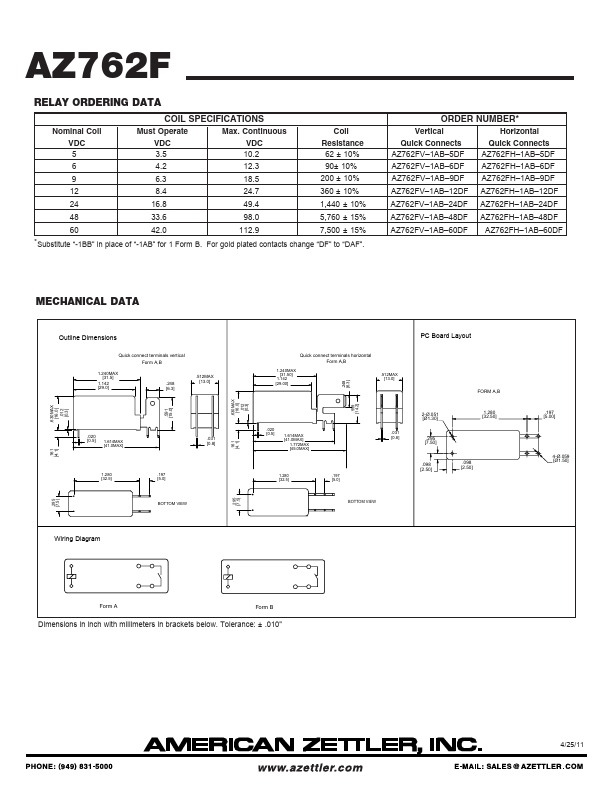

FEATURES
● High temperature operation 125°C● Dielectric strength 5000 Vrms
● 10 kV surge withstand
● 20 Amp switching
● Low profile Quick connects, Horizontal or Vertical
● Class F (155°C) standard
● Isolation spacing greater than 10 mm
● UL, CUR file E44211, VDE 40006031 CONTACTS Arrangement Ratings Rated Load UL, CUR SPST (1 Form A, 1 Form B) Resistive load: Max. switched power: 600 W or 5540 VA Max. switched current: 20 A Max. switched voltage: 150* VDC or 440 VAC *Note: If switching voltage is greater than 30 VDC, special precautions must be taken. Please contact the factory. 20 A at 277 VAC general use, 100k cycles VDE Material Resistance 18 A at 250 VAC, Res., 20k cycles (N.O.) 16 A at 250 VAC, Res., 80k cycles 12 A at 400 VAC, Res., 80k cycles Silver nickel, (gold plating available) < 50 milliohms initially (using 6 V 1 A method) COIL Power At Pickup Voltage (typical) Max. Continuous Dissipation Temperature Rise Max. Temperature 196 mW 1.7 W at 20°C (68°F) ambient 26°C (47°F) a...
