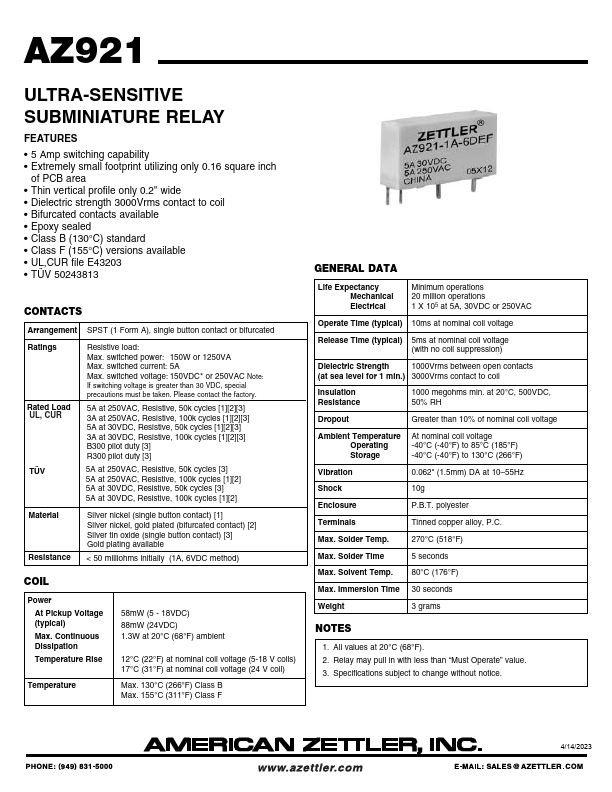

ZETTLER AZ921
ULTRA-SENSITIVE SUBMINIATURE RELAY
| Part No. | AZ921 |
|---|---|
| Datasheet | AZ921 Download |
| Manufacturer |  ZETTLER |
| Description | ULTRA-SENSITIVE SUBMINIATURE RELAY |
| Buy | Stock & Price |
FEATURES
● 5 Amp switching capability● Extremely small footprint utilizing only 0.16 square inch of PCB area
● Thin vertical profile only 0.2" wide
● Dielectric strength 3000Vrms contact to coil
● Bifurcated contacts available
● Epoxy sealed
● Class B (130°C) standard
● Class F (155°C) versions available
● UL,CUR file E43203
● TÜV 50243813 CONTACTS Arrangement SPST (1 Form A), single button contact or bifurcated Ratings Rated Load UL, CUR TÜV Resistive load: Max. switched power: 150W or 1250VA Max. switched current: 5A Max. switched voltage: 150VDC* or 250VAC Note: If switching voltage is greater than 30 VDC, special precautions must be taken. Please contact the factory. 5A at 250VAC, Resistive, 50k cycles [1][2][3] 3A at 250VAC, Resistive, 100k cycles [1][2][3] 5A at 30VDC, Resistive, 50k cycles [1][2][3] 3A at 30VDC, Resistive, 100k cycles [1][2][3] B300 pilot duty [3] R300 pilot duty [3] 5A at 250VAC, Resistive, 50k cycles [3] 5A at 250VAC, Resistive, 100k cycles [1][2] 5A at 30VDC...
