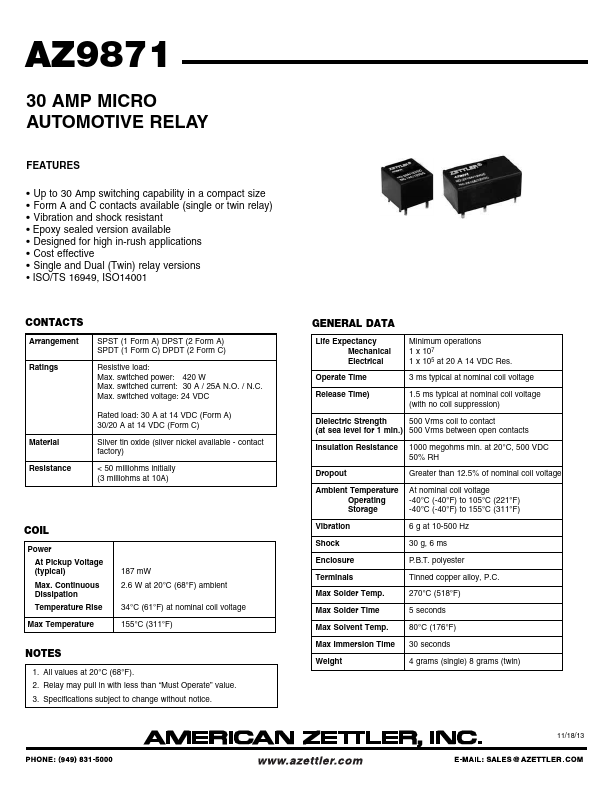

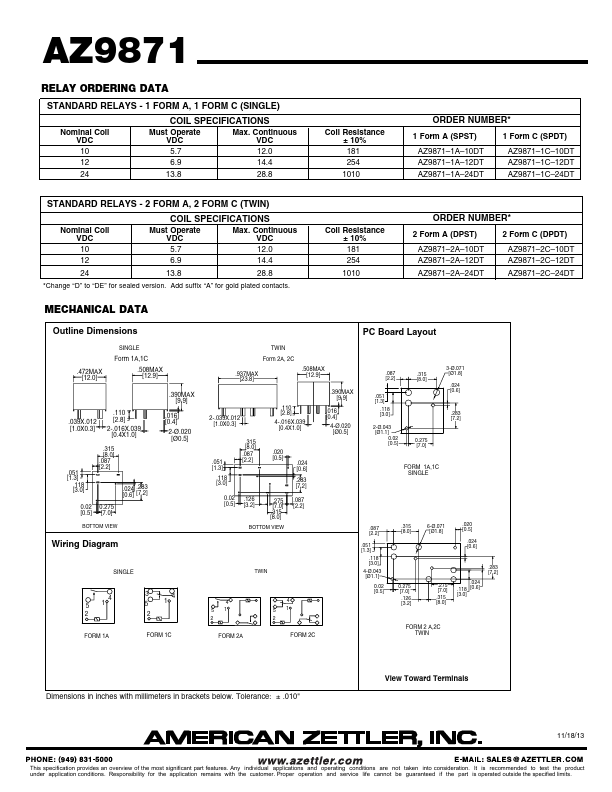

AZ9871
Overview
- Up to 30 Amp switching capability in a compact size
- Form A and C contacts available (single or twin relay)
- Vibration and shock resistant
- Epoxy sealed version available
- Designed for high in-rush applications
- Cost effective
- Single and Dual (Twin) relay versions
- ISO/TS 16949, ISO14001 CONTACTS Arrangement Ratings SPST (1 Form A) DPST (2 Form A) SPDT (1 Form C) DPDT (2 Form C) Resistive load: Max. switched power: 420 W Max. switched current: 30 A / 25A N.O. / N.C. Max. switched voltage: 24 VDC Material Resistance Rated load: 30 A at 14 VDC (Form A) 30/20 A at 14 VDC (Form C) Silver tin oxide (silver nickel available - contact factory) < 50 milliohms initially (3 milliohms at 10A) COIL Power At Pickup Voltage (typical) Max. Continuous Dissipation Temperature Rise Max Temperature 187 mW 2.6 W at 20°C (68°F) ambient 34°C (61°F) at nominal coil voltage 155°C (311°F) NOTES
- All values at 20°C (68°F).
- Relay may pull in with less than “Must Operate” value.
