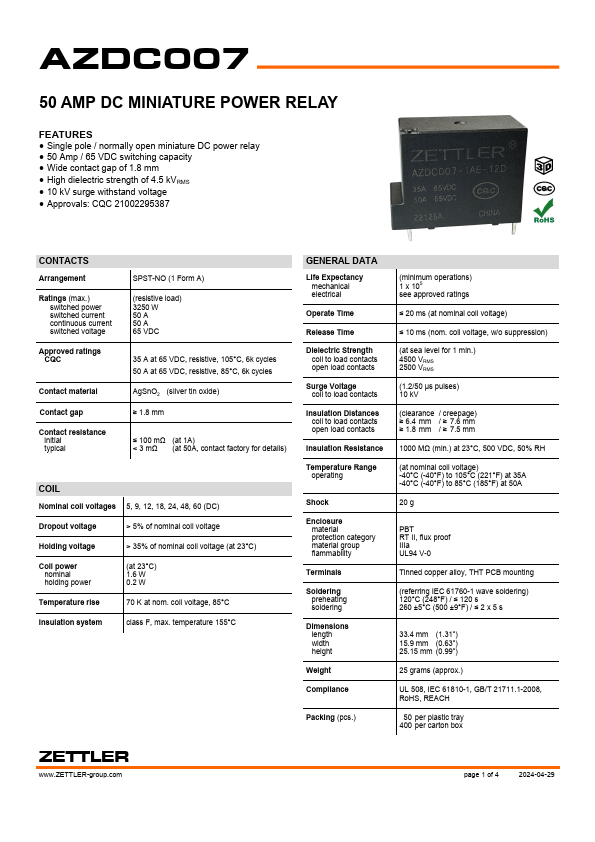

ZETTLER AZDC007
50 AMP DC MINIATURE POWER RELAY
| Part No. | AZDC007 |
|---|---|
| Datasheet | AZDC007 Download |
| Manufacturer |  ZETTLER |
| Description | 50 AMP DC MINIATURE POWER RELAY |
| Buy | Stock & Price |
FEATURES
● Single pole / normally open miniature DC power relay● 50 Amp / 65 VDC switching capacity
● Wide contact gap of 1.8 mm
● High dielectric strength of 4.5 kVRMS
● 10 kV surge withstand voltage
● Approvals: CQC 21002295387 CONTACTS Arrangement Ratings (max.) switched power switched current continuous current switched voltage Approved ratings CQC Contact material Contact gap Contact resistance initial typical SPST-NO (1 Form A) (resistive load) 3250 W 50 A 50 A 65 VDC 35 A at 65 VDC, resistive, 105°C, 6k cycles 50 A at 65 VDC, resistive, 85°C, 6k cycles AgSnO2 (silver tin oxide) ≥ 1.8 mm ≤ 100 mΩ (at 1A) < 3 mΩ (at 50A, contact factory for details) COIL Nominal coil voltages 5, 9, 12, 18, 24, 48, 60 (DC) Dropout voltage > 5% of nominal coil voltage Holding voltage > 35% of nominal coil voltage (at 23°C) Coil power nominal holding power (at 23°C) 1.6 W 0.2 W Temperature rise 70 K at nom. coil voltage, 85°C Insulation system class F, max. temperature 155°C GENERAL DATA Life Expect...
