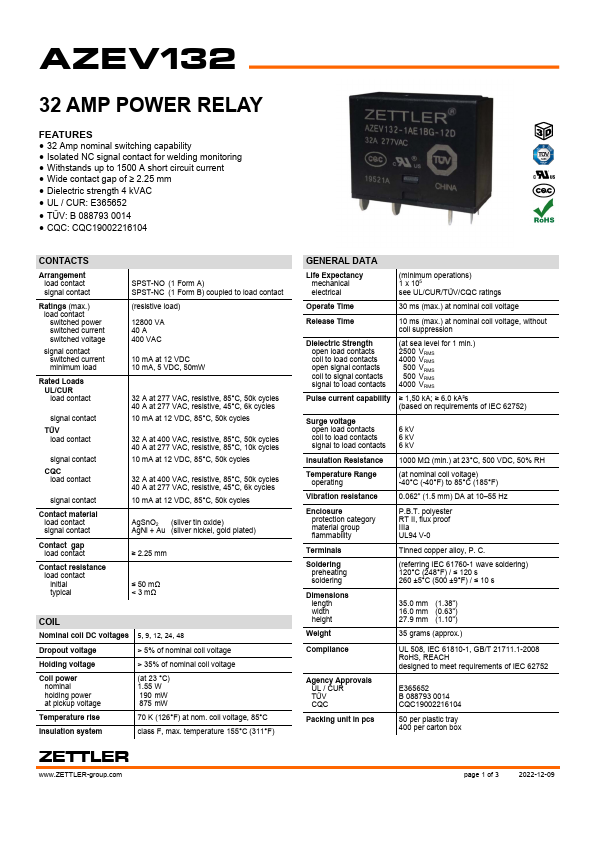

AZEV132
FEATURES
- 32 Amp nominal switching capability
- Isolated NC signal contact for welding monitoring
- Withstands up to 1500 A short circuit current
- Wide contact gap of ≥ 2.25 mm
- Dielectric strength 4 k VAC
- UL / CUR: E365652
- TÜV: B 088793 0014
- CQC: CQC19002216104
CONTACTS
Arrangement load contact signal contact
Ratings (max.) load contact switched power switched current switched voltage signal contact switched current minimum load
Rated Loads UL/CUR load contact signal contact
TÜV load contact signal contact
CQC load contact signal contact
Contact material load contact signal contact
Contact gap load contact
Contact resistance load contact initial typical
SPST-NO (1 Form A) SPST-NC (1 Form B) coupled to load contact (resistive load) 12800 VA 40 A 400 VAC
10 m A at 12 VDC 10 m A, 5 VDC, 50m W
32 A at 277 VAC, resistive, 85°C, 50k cycles 40 A at 277 VAC, resistive, 45°C, 6k cycles 10 m A at 12 VDC, 85°C, 50k cycles
32 A at 400 VAC, resistive, 85°C, 50k cycles 40 A at 277 VAC,...
