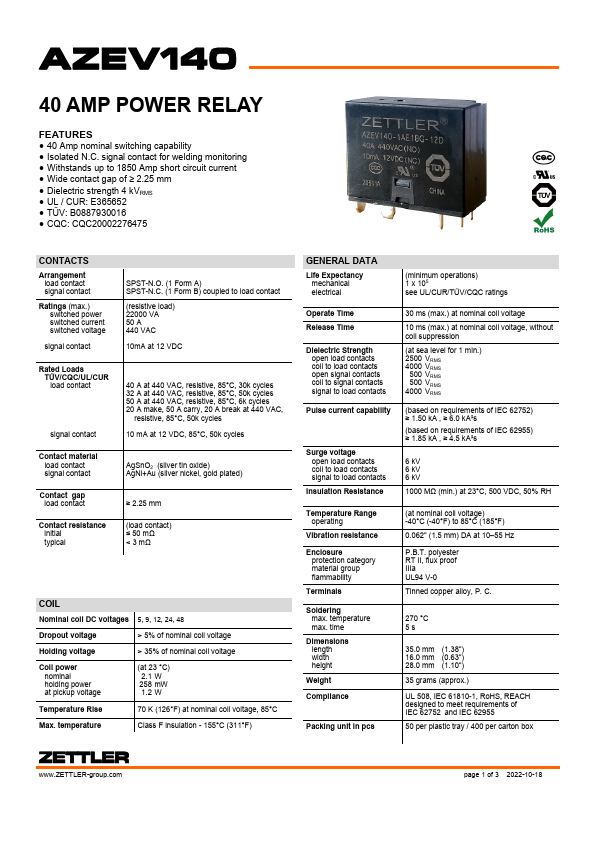

Datasheet Summary
40 AMP POWER RELAY
Features
- 40 Amp nominal switching capability
- Isolated N.C. signal contact for welding monitoring
- Withstands up to 1850 Amp short circuit current
- Wide contact gap of ≥ 2.25 mm
- Dielectric strength 4 kVRMS
- UL / CUR: E365652
- TÜV: B0887930016
- CQC: CQC20002276475
CONTACTS
Arrangement load contact signal contact
Ratings (max.) switched power switched current switched voltage signal contact
SPST-N.O. (1 Form A) SPST-N.C. (1 Form B) coupled to load contact
(resistive load) 22000 VA 50 A 440 VAC
10mA at 12 VDC
Rated Loads TÜV/CQC/UL/CUR load contact signal contact
40 A at 440 VAC, resistive, 85°C, 30k cycles 32 A at 440 VAC, resistive, 85°C, 50k cycles...
