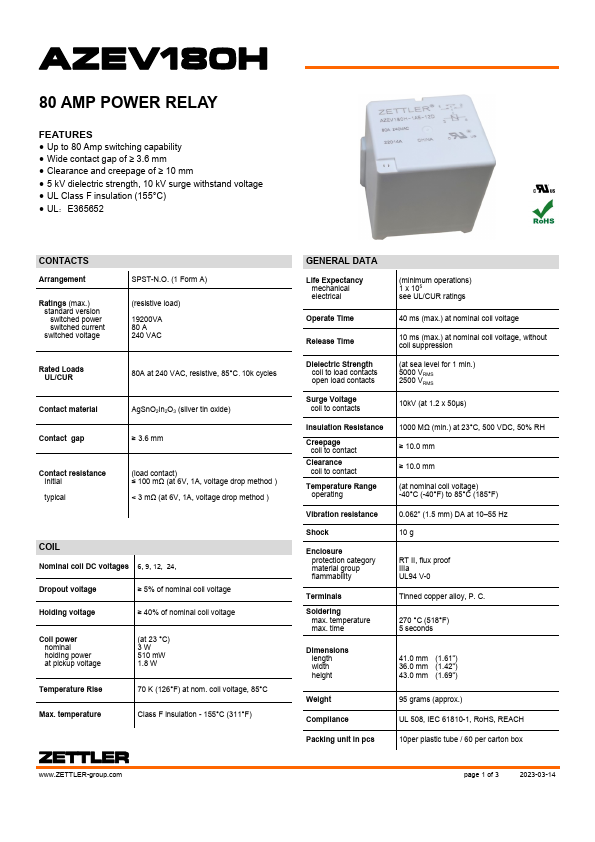

Datasheet Summary
80 AMP POWER RELAY
Features
- Up to 80 Amp switching capability
- Wide contact gap of ≥ 3.6 mm
- Clearance and creepage of ≥ 10 mm
- 5 kV dielectric strength, 10 kV surge withstand voltage
- UL Class F insulation (155°C)
- UL：E365652
CONTACTS
Arrangement
Ratings (max.) standard version switched power switched current switched voltage
SPST-N.O. (1 Form A)
(resistive load)
19200VA 80 A 240 VAC
Rated Loads UL/CUR
Contact material
Contact gap
80A at 240 VAC, resistive, 85°C,10k cycles AgSnO2In2O3 (silver tin oxide) ≥ 3.6 mm
Contact resistance Initial typical
(load contact) ≤ 100 mΩ (at 6V, 1A, voltage drop method )
< 3 mΩ (at 6V, 1A, voltage drop method )

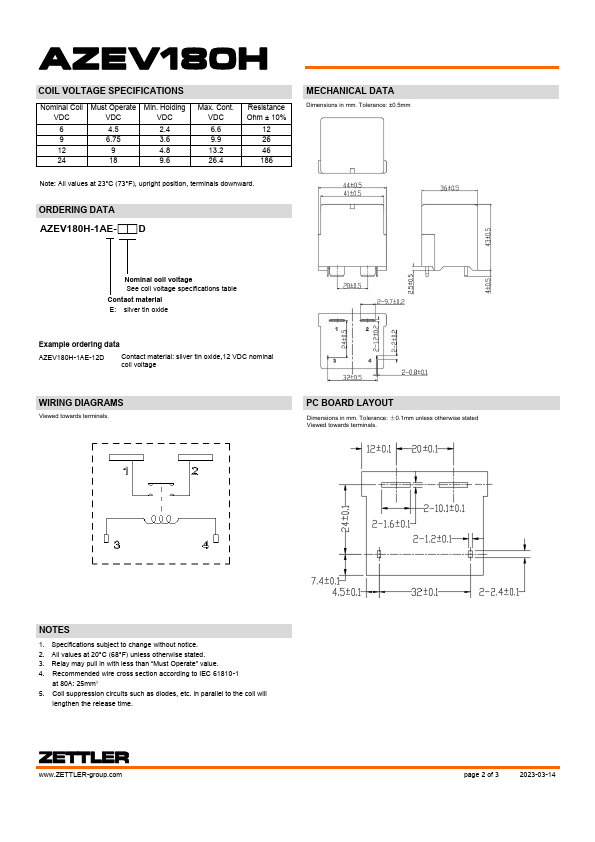

COIL
Nominal coil DC...
