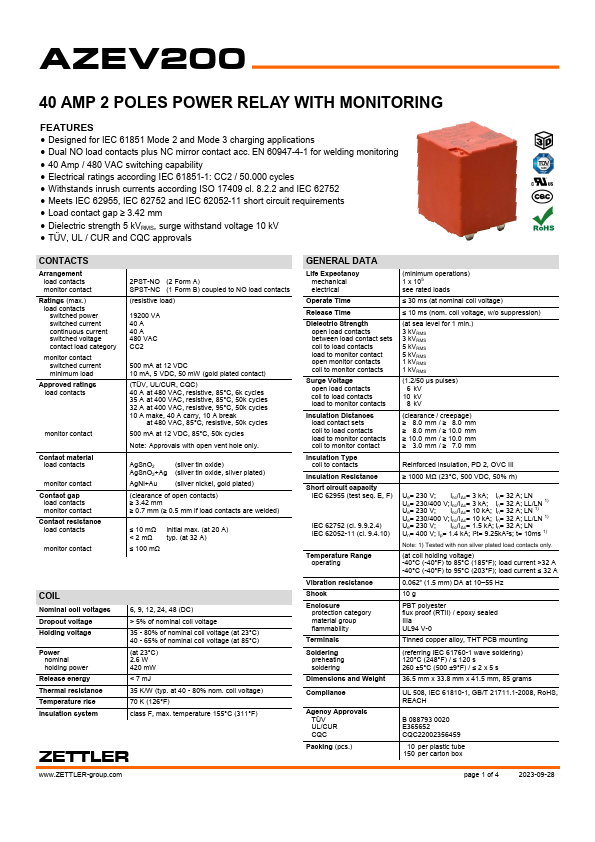

Datasheet Summary
40 AMP 2 POLES POWER RELAY WITH MONITORING
Features
- Designed for IEC 61851 Mode 2 and Mode 3 charging applications
- Dual NO load contacts plus NC mirror contact acc. EN 60947-4-1 for welding monitoring
- 40 Amp / 480 VAC switching capability
- Electrical ratings according IEC 61851-1: CC2 / 50.000 cycles
- Withstands inrush currents according ISO 17409 cl. 8.2.2 and IEC 62752
- Meets IEC 62955, IEC 62752 and IEC 62052-11 short circuit requirements
- Load contact gap ≥ 3.42 mm
- Dielectric strength 5 kVRMS, surge withstand voltage 10 kV
- TÜV, UL / CUR and CQC approvals
CONTACTS
Arrangement load contacts monitor contact
Ratings (max.) load contacts switched power switched...
