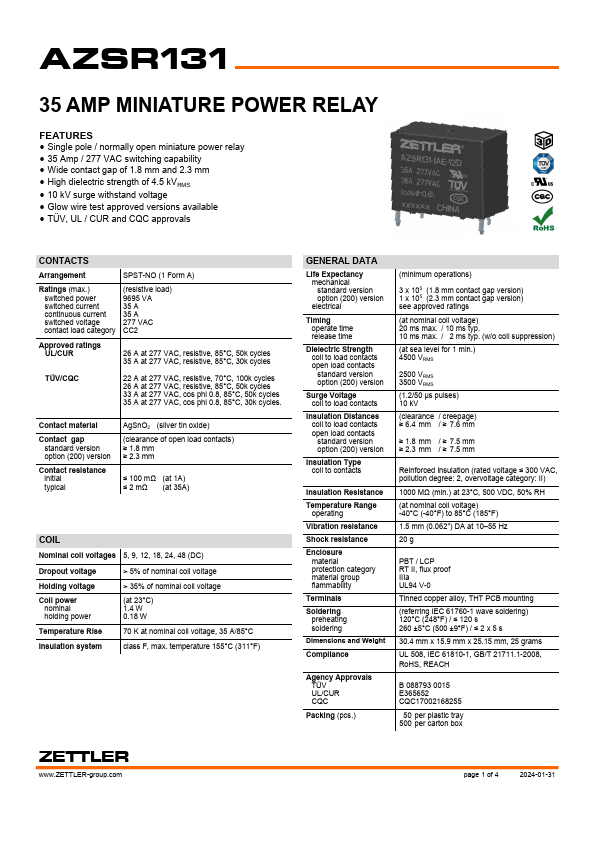

AZSR131
FEATURES
- Single pole / normally open miniature power relay
- 35 Amp / 277 VAC switching capability
- Wide contact gap of 1.8 mm and 2.3 mm
- High dielectric strength of 4.5 k VRMS
- 10 k V surge withstand voltage
- Glow wire test approved versions available
- TÜV, UL / CUR and CQC approvals
CONTACTS
Arrangement
SPST-NO (1 Form A)
Ratings (max.) switched power switched current continuous current switched voltage contact load category
(resistive load) 9695 VA 35 A 35 A 277 VAC CC2
Approved ratings UL/CUR
26 A at 277 VAC, resistive, 85°C, 50k cycles 35 A at 277 VAC, resistive, 85°C, 30k cycles
TÜV/CQC
22 A at 277 VAC, resistive, 70°C, 100k cycles 26 A at 277 VAC, resistive, 85°C, 50k cycles 33 A at 277 VAC, cos phi 0.8, 85°C, 50k cycles 35 A at 277 VAC, cos phi 0.8, 85°C, 30k cycles.
Contact material
Contact gap standard version option (200) version
Contact resistance initial typical
Ag Sn O2 (silver tin oxide)
(clearance of open load contacts) ≥ 1.8 mm ≥ 2.3 mm

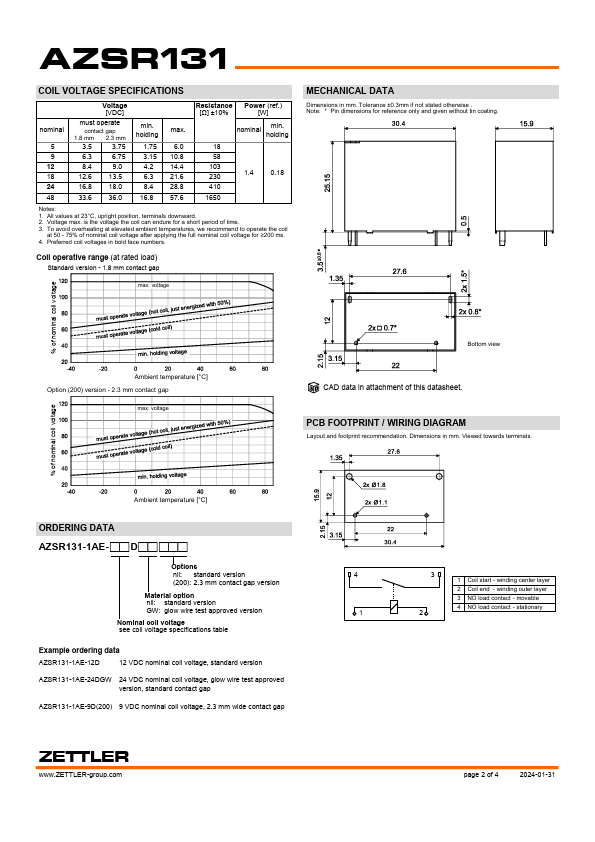

≤ 100 mΩ (at 1A)...
