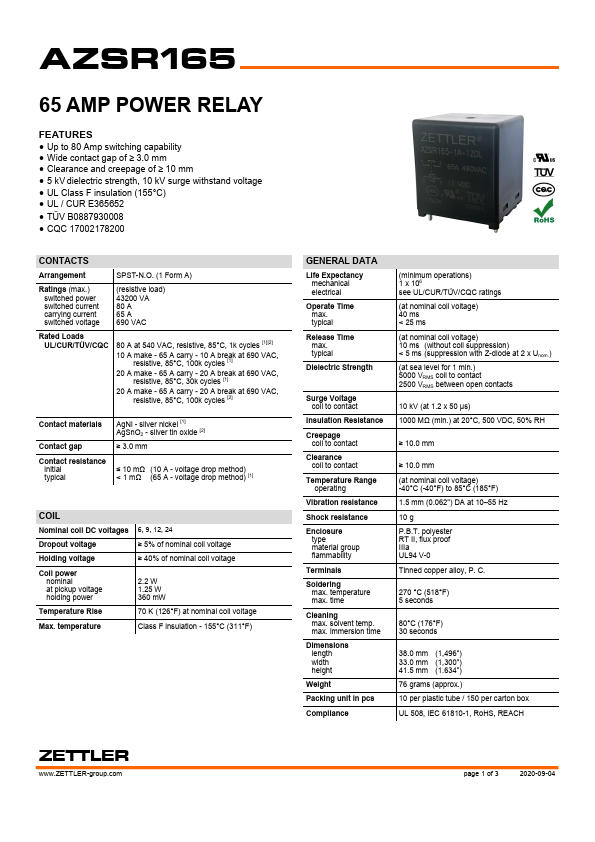

AZSR165
FEATURES
- Up to 80 Amp switching capability
- Wide contact gap of ≥ 3.0 mm
- Clearance and creepage of ≥ 10 mm
- 5 k V dielectric strength, 10 k V surge withstand voltage
- UL Class F insulation (155°C)
- UL / CUR E365652
- TÜV B0887930008
- CQC 17002178200
CONTACTS
Arrangement
SPST-N.O. (1 Form A)
Ratings (max.) switched power switched current carrying current switched voltage
(resistive load) 43200 VA 80 A 65 A 690 VAC
Rated Loads UL/CUR/TÜV/CQC
80 A at 540 VAC, resistive, 85°C, 1k cycles [1][2] 10 A make
- 65 A carry
- 10 A break at 690 VAC, resistive, 85°C, 100k cycles [1] 20 A make
- 65 A carry
- 20 A break at 690 VAC, resistive, 85°C, 30k cycles [1] 20 A make
- 65 A carry
- 20 A break at 690 VAC, resistive, 85°C, 100k cycles [2]
Contact materials
Contact gap Contact resistance initial typical
Ag Ni
- silver nickel [1] Ag Sn O2
- silver tin oxide [2] ≥ 3.0 mm
≤ 10 mΩ (10 A
- voltage drop method) < 1 mΩ (65 A
- voltage drop method) [1]

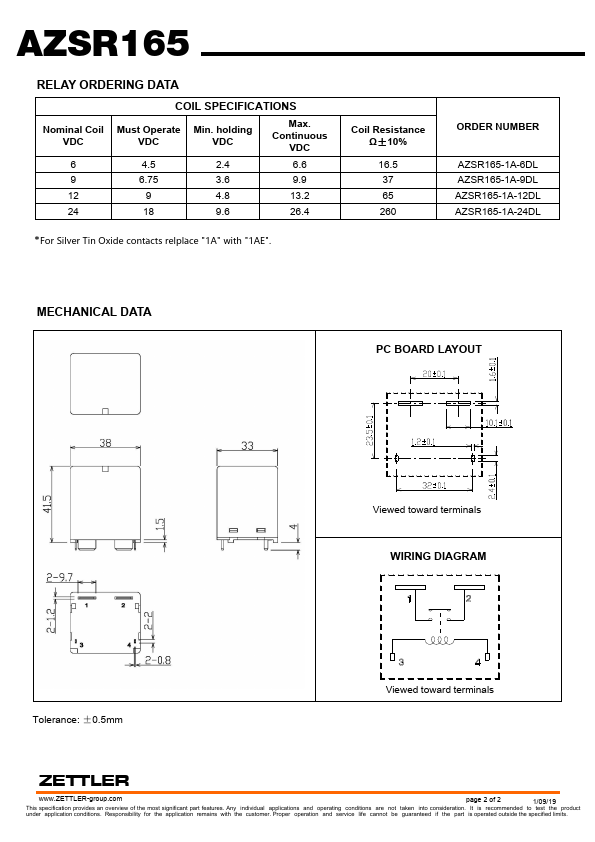

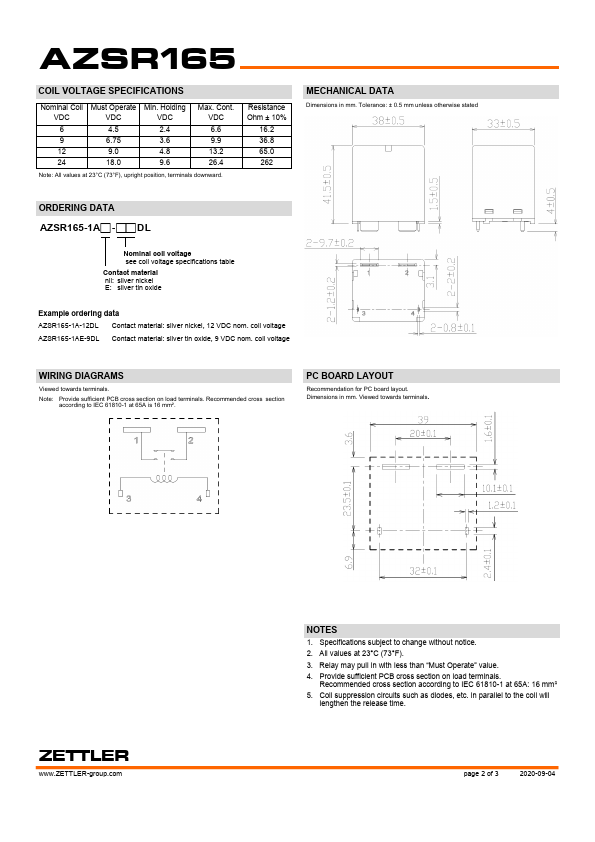

COIL
Nominal coil DC voltages 6, 9,...
