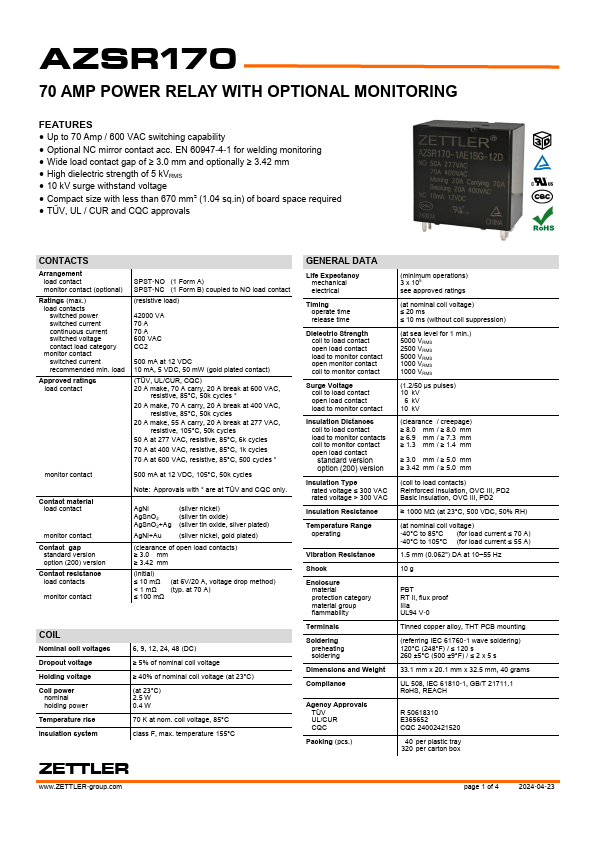

Datasheet Summary
70 AMP POWER RELAY WITH OPTIONAL MONITORING
Features
- Up to 70 Amp / 600 VAC switching capability
- Optional NC mirror contact acc. EN 60947-4-1 for welding monitoring
- Wide load contact gap of ≥ 3.0 mm and optionally ≥ 3.42 mm
- High dielectric strength of 5 kVRMS
- 10 kV surge withstand voltage
- pact size with less than 670 mm² (1.04 sq.in) of board space required
- TÜV, UL / CUR and CQC approvals
CONTACTS
Arrangement load contact monitor contact (optional)
Ratings (max.) load contacts switched power switched current continuous current switched voltage contact load category monitor contact switched current remended min. load
Approved ratings load contact
SPST-NO (1...
