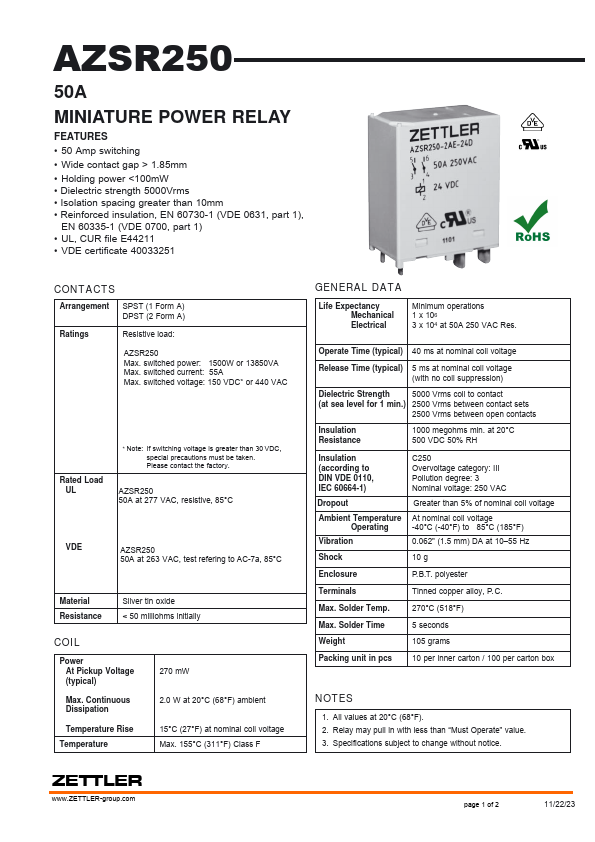

Datasheet Summary
50A
MINIATURE POWER RELAY
Features
- 50 Amp switching
- Wide contact gap > 1.85mm
- Holding power <100mW
- Dielectric strength 5000Vrms
- Isolation spacing greater than 10mm
- Reinforced insulation, EN 60730-1 (VDE 0631, part 1),
EN 60335-1 (VDE 0700, part 1)
- UL, CUR file E44211
- VDE certificate 40033251
CONTACTS
Arrangement SPST (1 Form A) DPST (2 Form A)
Ratings
Resistive load:
AZSR250 Max. switched power: 1500W or 13850VA Max. switched current: 55A Max. switched voltage: 150 VDC- or 440 VAC
Rated Load UL
- Note: If switching voltage is greater than 30 VDC, special precautions must be taken. Please contact the factory.
AZSR250 50A at 277 VAC, resistive,...
