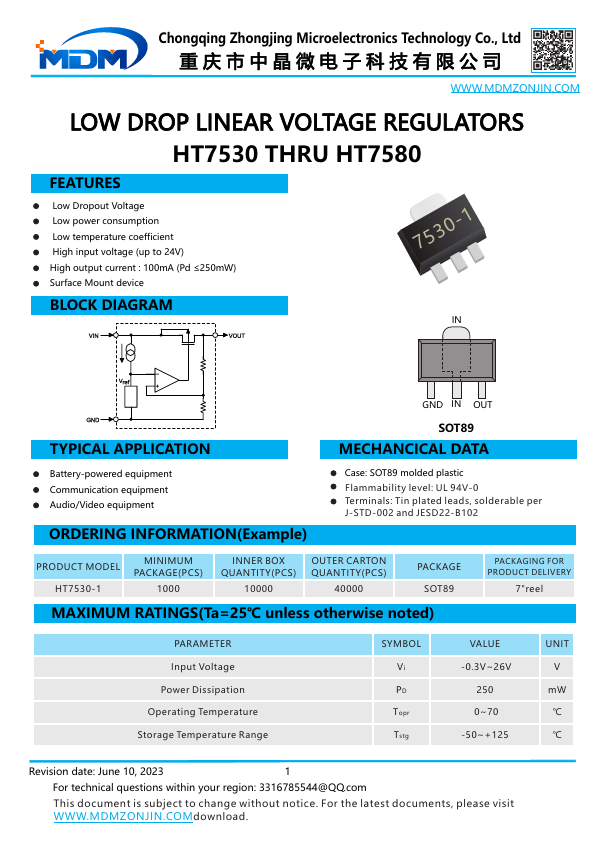

ZHONGJING HT7530
LOW DROP LINEAR VOLTAGE REGULATORS
| Part No. | HT7530 |
|---|---|
| Datasheet | HT7530 Download |
| Manufacturer | ZHONGJING |
| Description | LOW DROP LINEAR VOLTAGE REGULATORS |
| Buy | Stock & Price |
FEATURES
Low Dropout Voltage Low power consumption Low temperature coefficient High input voltage (up to 24V) High output current : 100mA (Pd ≤250mW) Surface Mount device BLOCK DIAGRAM 7530-1 IN GND IN OUT TYPICAL APPLICATION Battery-powered equipment Communication equipment Audio/Video equipment ORDERING INFORMATION(Example) SOT89 MECHANCICAL DATA Case: SOT89 molded plastic Flammability level: UL 94V-0 Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 PRODUCT MODEL HT7530-1 MINIMUM PACKAGE(PCS) 1000 INNER BOX QUANTITY(PCS) 10000 OUTER CARTON QUANTITY(PCS) 40000 PACKAGE SOT89 PACKAGING FOR PRODUCT DELIVERY 7"reelMAXIMUM RATINGS
(Ta=25℃ unless otherwise noted) PARAMETER Input Voltage Power Dissipation Operating Temperature Storage Temperature Range SYMBOL Vi PD Topr Tstg VALUE -0.3V~26V 250 0~70 -50~+125 UNIT V mW ℃ ℃ Revision date: June 10, 2023 1 For technical questions within your region: 3316785544@QQ.com This document is subject to change without notice. For the latest documents, please visit Chongqing Zhongjing Microelectronics Technology Co., Ltd 重庆市中晶微电子科技有限公司 SELECTION TABLE PART NO.
