HT7544-1 Datasheet | ZHONGJING

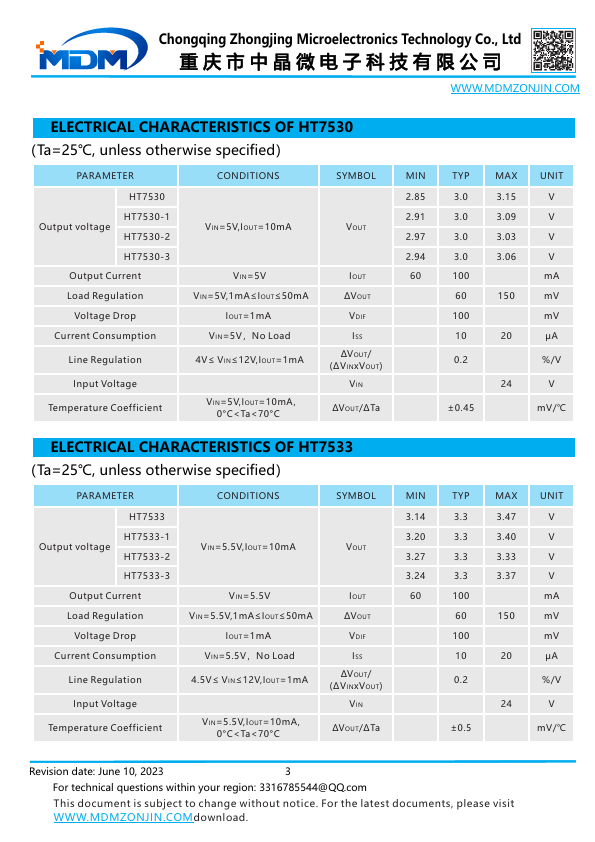

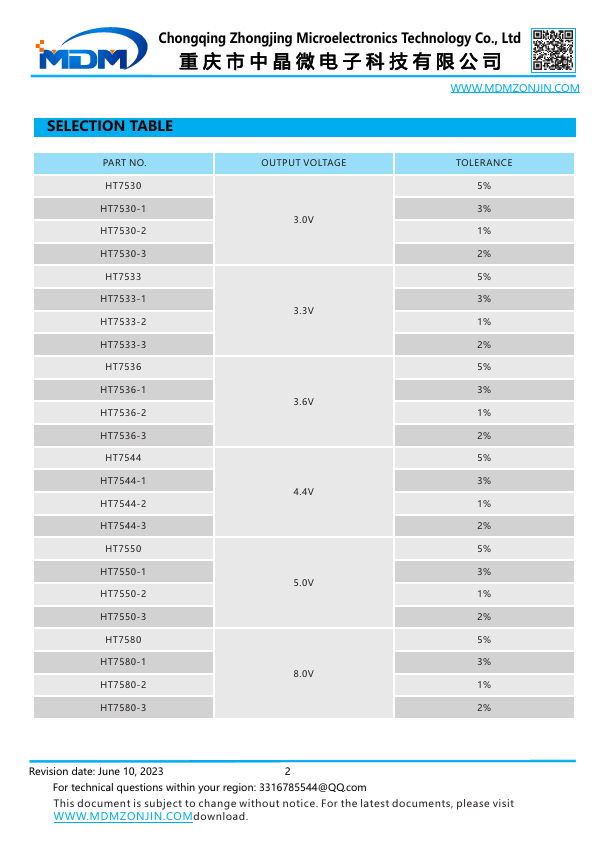

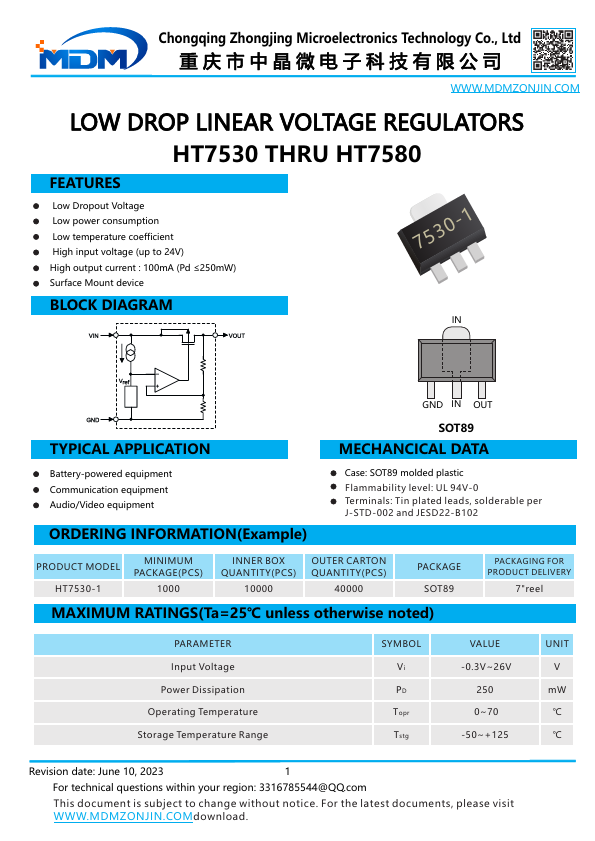

Chongqing Zhongjing Microelectronics Technology Co., Ltd 重庆市中晶微电子科技有限公司 .MDMZONJIN. LOW DROP LINEAR VOLTAGE REGULATORS HT7530 THRU HT7580 Features Low Dropout Voltage Low power consumption Low temperature coefficient High input voltage (up to 24V) High output current : 100m A (Pd ≤250m W) Surface Mount device BLOCK DIAGRAM 7530-1 GND IN OUT TYPICAL APPLICATION Battery-powered equipment munication equipment Audio/Video equipment ORDERING INFORMATION(Example) SOT89 MECHANCICAL DATA Case: SOT89 molded plastic Flammability level: UL 94V-0 Terminals: Tin plated leads, solderable per J-STD-002 and JESD22-B102 PRODUCT MODEL HT7530-1 MINIMUM PACKAGE(PCS) INNER BOX QUANTITY(PCS) OUTER CARTON QUANTITY(PCS) PACKAGE SOT89 PACKAGING FOR PRODUCT DELIVERY 7"reel MAXIMUM RATINGS(Ta=25℃ unless otherwise noted) PARAMETER Input Voltage Power Dissipation Operating Temperature Storage Temperature Range SYMBOL Vi PD Topr Tstg VALUE -0.3V~26V 250 0~70 -50~+125 UNIT V m W ℃ ℃ Revision date: June 10,...
