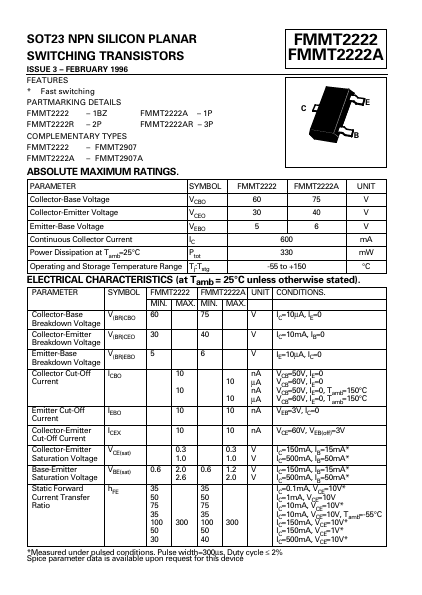

FMMT2222A
FEATURES
- Fast switching
PARTMARKING DETAILS
FMMT2222 1BZ
FMMT2222A 1P
FMMT2222R 2P
FMMT2222AR 3P
PLEMENTARY TYPES
FMMT2222 FMMT2907
FMMT2222A FMMT2907A
ABSOLUTE MAXIMUM RATINGS.
PARAMETER
SYMBOL FMMT2222 FMMT2222A UNIT
Collector-Base Voltage
VCBO
Collector-Emitter Voltage
VCEO
Emitter-Base Voltage
VEBO
Continuous Collector Current
600 m A
Power Dissipation at Tamb=25°C
Ptot
330 m W
Operating and Storage Temperature Range Tj:Tstg
-55 to +150
°C
ELECTRICAL CHARACTERISTICS (at Tamb = 25°C unless otherwise stated).
PARAMETER
SYMBOL FMMT2222 FMMT2222A UNIT CONDITIONS.
MIN. MAX. MIN. MAX.
Collector-Base
V(BR)CBO 60
Breakdown...
