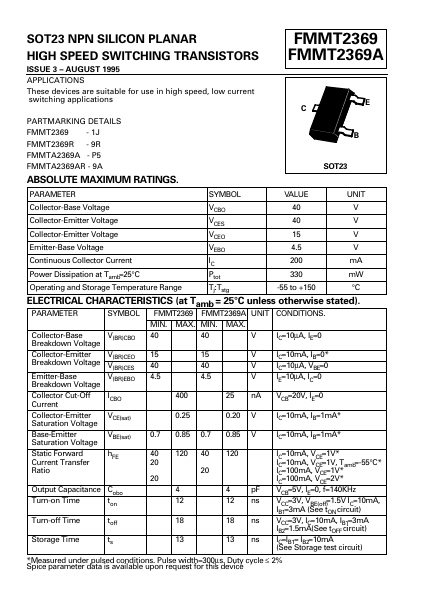

FMMT2369A
SOT23 NPN SILICON PLANAR HIGH SPEED SWITCHING TRANSISTORS
FMMT2369 FMMT2369A
ISSUE 3 AUGUST 1995
APPLICATIONS
These devices are suitable for use in high speed, low current switching applications
PARTMARKING DETAILS FMMT2369
- 1J FMMT2369R
- 9R FMMTA2369A
- P5 FMMTA2369AR
- 9A
B SOT23
ABSOLUTE MAXIMUM RATINGS.
PARAMETER
SYMBOL
VALUE
UNIT
Collector-Base Voltage
VCBO
Collector-Emitter Voltage
VCES
Collector-Emitter Voltage
VCEO
Emitter-Base Voltage
VEBO
Continuous Collector Current
200 m A
Power Dissipation at Tamb=25°C
Ptot
330 m W
Operating and Storage Temperature Range
Tj:Tstg
-55 to +150
°C
ELECTRICAL CHARACTERISTICS (at Tamb = 25°C unless otherwise...
