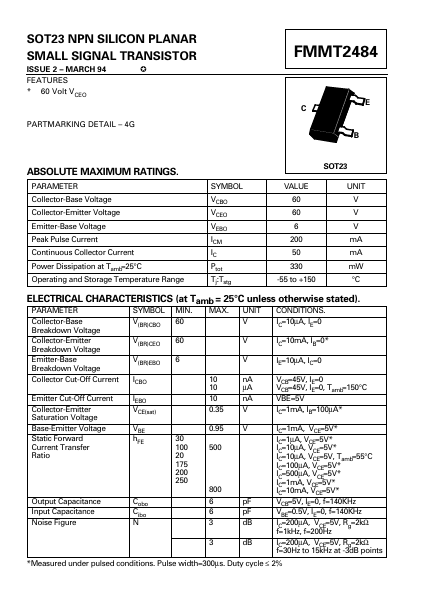

FMMT2484
FEATURES
- 60 Volt VCEO
PARTMARKING DETAIL 4G
ABSOLUTE MAXIMUM RATINGS.
PARAMETER Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Peak Pulse Current Continuous Collector Current Power Dissipation at Tamb=25°C Operating and Storage Temperature Range
SYMBOL
VCBO VCEO VEBO ICM IC Ptot Tj:Tstg
SOT23
VALUE 60 60 6 200 50 330
-55 to +150
UNIT V V V m A m A m W °C
ELECTRICAL CHARACTERISTICS (at Tamb = 25°C unless otherwise stated).
PARAMETER
SYMBOL MIN. MAX. UNIT CONDITIONS.
Collector-Base Breakdown Voltage
V(BR)CBO 60
IC=10µA, IE=0
Collector-Emitter Breakdown Voltage
V(BR)CEO 60
IC=10m A, IB=0-
Emitter-Base Breakdown Voltage
V(BR)EBO
IE=10µA, IC=0
Collector Cut-Off Current
Emitter Cut-Off Current Collector-Emitter Saturation Voltage
ICBO
IEBO VCE(sat)
10 n A
µA
10 n A
0.35 V
VCB=45V, IE=0 VCB=45V, IE=0, Tamb=150°C VBE=5V
IC=1m A, IB=100µA-
Base-Emitter Voltage Static Forward Current Transfer Ratio
Output...
