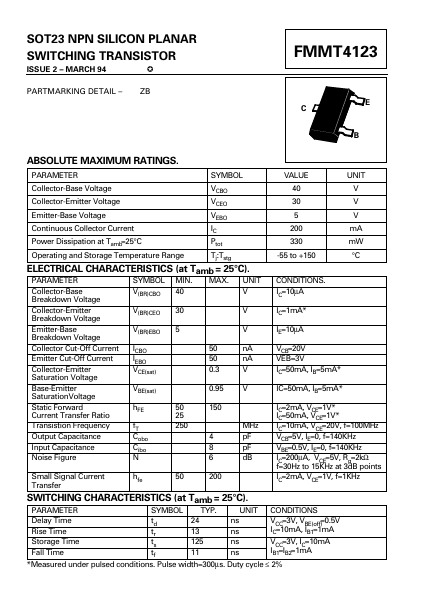

FMMT4123
SOT23 NPN SILICON PLANAR
SWITCHING TRANSISTOR
ISSUE 2 MARCH 94
PARTMARKING DETAIL ZB
ABSOLUTE MAXIMUM RATINGS.
PARAMETER
SYMBOL
VALUE
UNIT
Collector-Base Voltage
VCBO
Collector-Emitter Voltage
VCEO
Emitter-Base Voltage
VEBO
Continuous Collector Current
200 m A
Power Dissipation at Tamb=25°C
Ptot
330 m W
Operating and Storage Temperature Range
Tj:Tstg
-55 to +150
°C
ELECTRICAL CHARACTERISTICS (at Tamb = 25°C).
PARAMETER
SYMBOL MIN. MAX. UNIT CONDITIONS.
Collector-Base Breakdown Voltage
V(BR)CBO 40
IC=10µA
Collector-Emitter Breakdown Voltage
V(BR)CEO 30
IC=1m A-...
