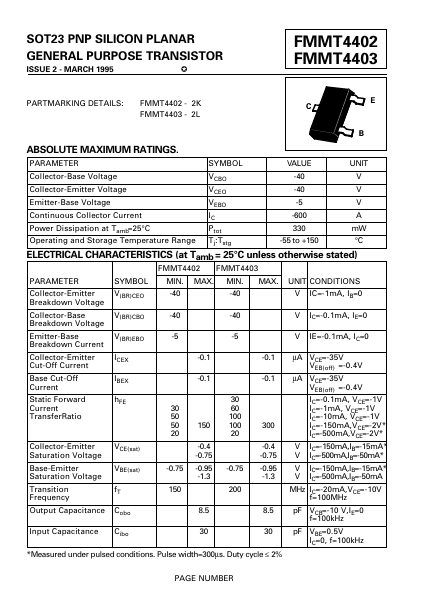

FMMT4403
SOT23 PNP SILICON PLANAR
GENERAL PURPOSE TRANSISTOR
ISSUE 2
- MARCH 1995
FMMT4402 FMMT4403
PARTMARKING DETAILS:
FMMT4402
- 2K FMMT4403
- 2L
ABSOLUTE MAXIMUM RATINGS.
PARAMETER
SYMBOL
VALUE
UNIT
Collector-Base Voltage
VCBO
-40
Collector-Emitter Voltage
VCEO
-40
Emitter-Base Voltage
VEBO
-5
Continuous Collector Current
-600
Power Dissipation at Tamb=25°C
Ptot
330 m W
Operating and Storage Temperature Range Tj:Tstg
-55 to +150
°C
ELECTRICAL CHARACTERISTICS (at Tamb = 25°C unless otherwise stated)
FMMT4402...
