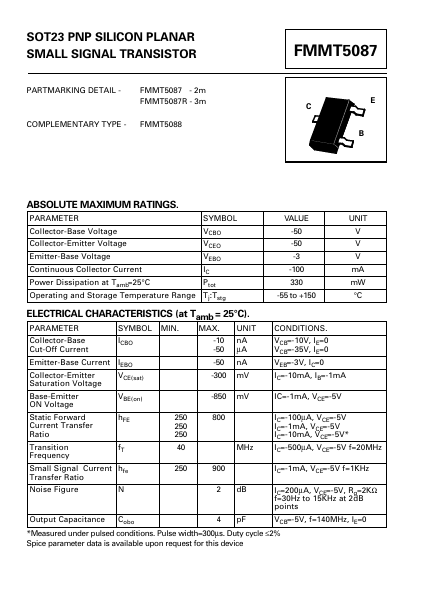

FMMT5087
SOT23 PNP SILICON PLANAR SMALL SIGNAL TRANSISTOR
PARTMARKING DETAIL
- FMMT5087
- 2m FMMT5087R
- 3m
PLEMENTARY TYPE
- FMMT5088
ABSOLUTE MAXIMUM RATINGS.
PARAMETER
SYMBOL
Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Continuous Collector Current Power Dissipation at Tamb=25°C Operating and Storage Temperature Range
VCBO VCEO VEBO IC Ptot Tj:Tstg
VALUE -50 -50 -3 -100 330
-55 to +150
UNIT V V V m A m W °C
ELECTRICAL CHARACTERISTICS (at Tamb = 25°C).
PARAMETER
SYMBOL MIN. MAX. UNIT
CONDITIONS.
Collector-Base
ICBO
Cut-Off Current
Emitter-Base Current IEBO
Collector-Emitter Saturation Voltage
VCE(sat)
-10 n A -50 µA
-50 n A
-300 m V
VCB=-10V, IE=0 VCB=-35V, IE=0 VEB=-3V, IC=0 IC=-10m A, IB=-1m A
Base-Emitter ON Voltage
VBE(on)
-850 m V
IC=-1m A, VCE=-5V
Static Forward h FE
Current Transfer
Ratio
Transition f...
